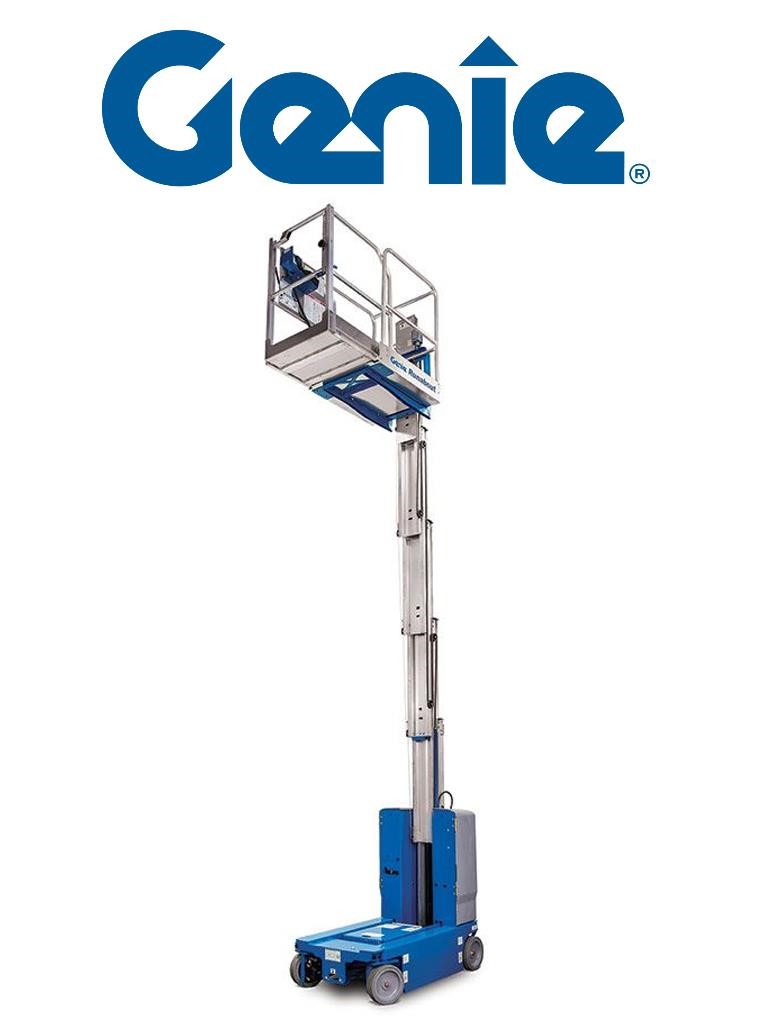

GENIE VERTICAL MAST LIFTS — GR20

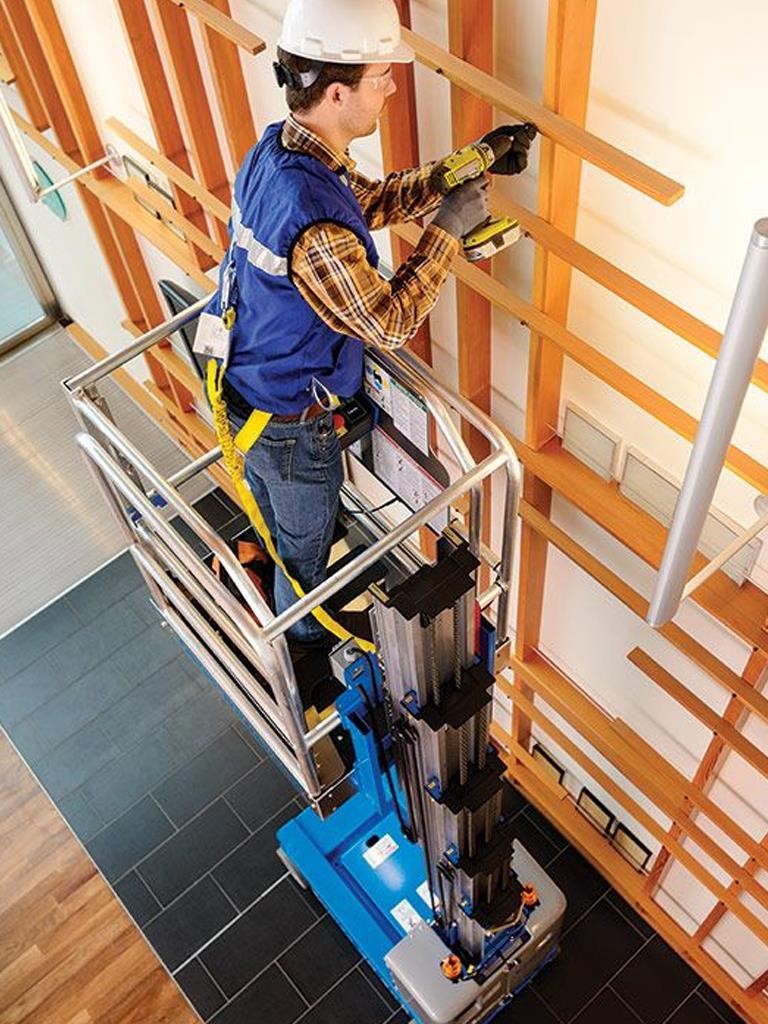

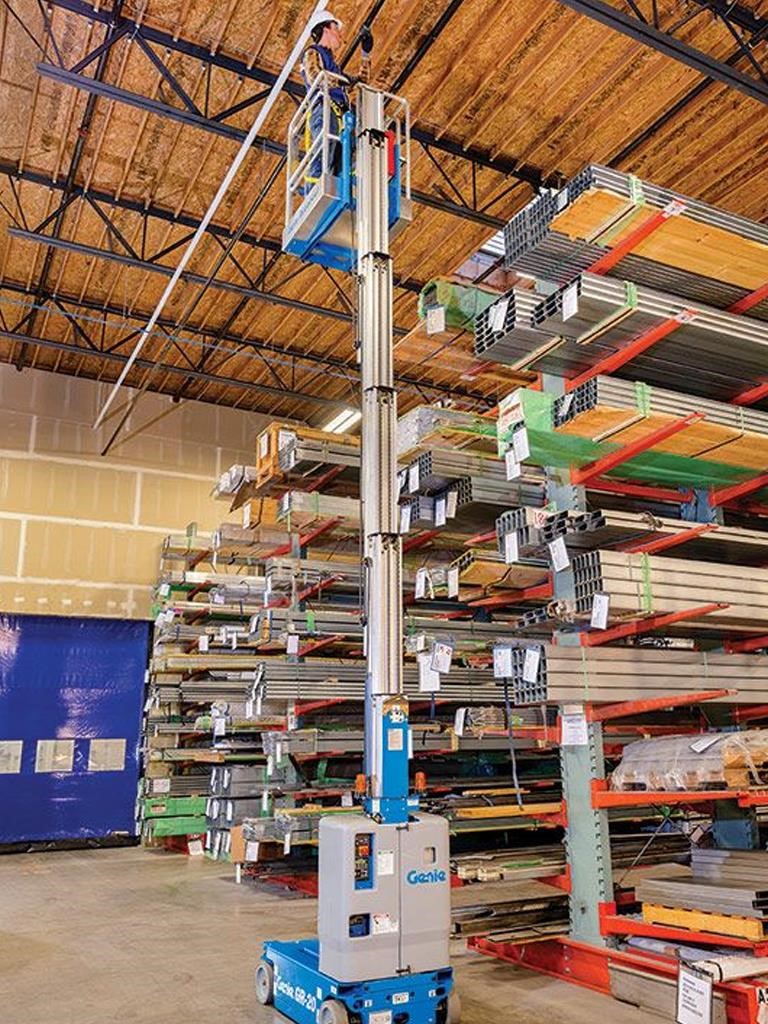

Genie® Runabout® aerial work platforms are designed to enhance productivity in the workplace. Flexible features on the Genie GR™ models offer convenience at a low cost. Their lightweight construction makes them easy to maneuver, use and transport, delivering excellent uptime. Each model offers a variety of options and accessories to customize the machine to match the application. Genie aerial work platforms offer an economical solution for all operators’ access needs.

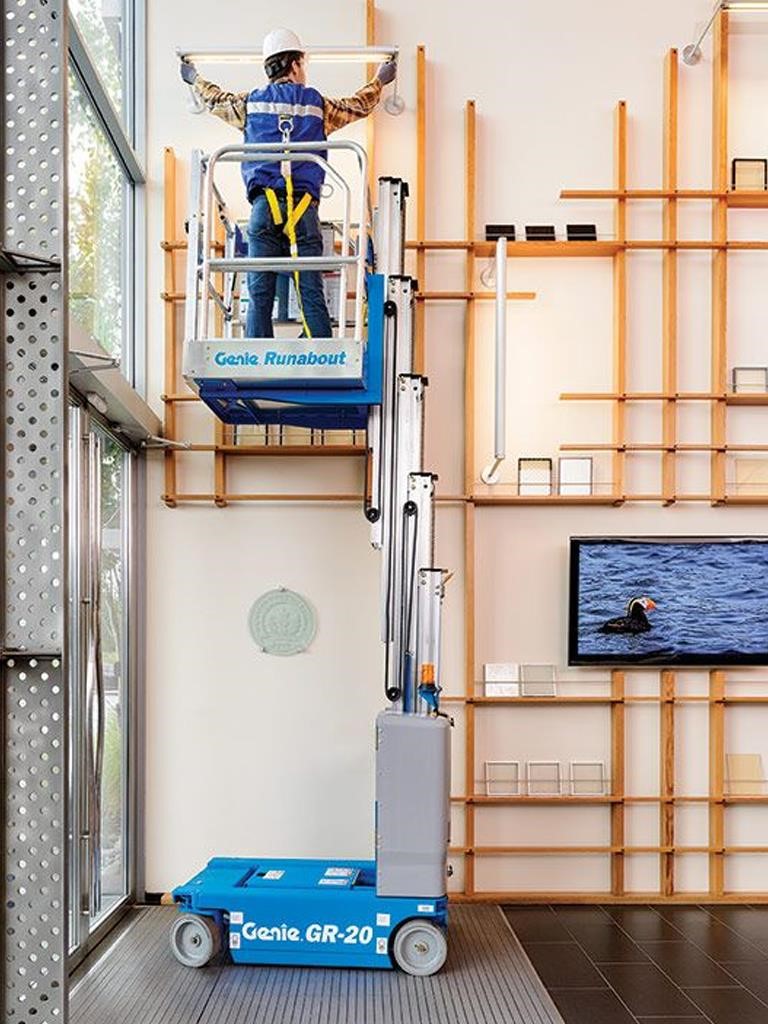

Genie® Runabout® GR™-20 lifts are compact, low-weight machines that increase productivity on the job thanks to their ability to fit through doorways and in most passenger elevators. And, it can be driven through doorways with operator on board. A zero inside turning radius and full elevation drive feature also contribute to these models’ increased productivity.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Weight*** / Floor Loading**** - NOTE: *** Weight will vary depending on options and/or country standards. **** Floor loading information is approximate and does not incorporate different option configurations. It should be used only with adequate safety factors.
- Power - Hydraulic tank capacity: 2.2 gal (8.33 L)
- Productivity - Drive speed - stowed: 2.5 mph (4.0 km/h)
- Technical Data - Platform height max. - outdoor: 15 ft 6 in (4.70 m)
- Technical Data - Platform dimensions (length x width) - Standard retracted: 35 × 29.5 in (0.89 × 0.75 m)
- Technical Data - Note: *The metric equivalent of working height adds 2m to platform height. U.S. adds 6ft to platform height.
- Productivity - Drive speed - raised: 0.5 mph (0.8 km/h)
- Weight*** / Floor Loading**** - Tire load max.: 870 lb (395 kg)
- Weight*** / Floor Loading**** - Weight : 2,513 lb (1,140 kg)
- Technical Data - Width: 2 ft 7.5 in (0.80 m)
- Productivity - Gradeability**: 30%
- Productivity - Lift capacity: 350 lb (159 kg)
- Sound And Vibration Levels - Vibrations: < 8 ft 2 in/s² (< 2.5m/s²)
- Technical Data - Working height max. - outdoor*: 21 ft 6 in (6.70 m)
- Productivity - Lift capacity - extension deck extended: 250 lbs (113 kg)
- Sound And Vibration Levels - Sound Pressure level (platform workstation): < 70 dBA
- Weight*** / Floor Loading**** - Occupied floor pressure: 250.39 psf (12.0 kPa)
- Productivity - Note: **Gradeability applies to driving on slopes and may vary depending on options and machine configurations.
- Technical Data - Platform height max. - indoor: 19 ft 9 in (6.02 m)
- Productivity - Lifting speed - raise/lower: 24/21 sec
- Technical Data - Platform dimensions (length x width) - Standard extended: 55 × 29.5 in (1.4 × 0.75 m)
- Productivity - Turning radius - inside: zero
- Productivity - Tilt sensor activation (front to back/side to side): 3° / 1.5°
- Technical Data - Height - stowed: 6 ft 6 in (1.98 m)
- Productivity - Turning radius - outside: 4 ft 4 in (1.32 m)
- Productivity - Controls - proportional: 24V DC
- Power - Power source: 24V (4 x 6V 225Ah)
- Weight*** / Floor Loading**** - Tire contact pressure: 133.8 psi (922.8 Kpa)
- Productivity - Maximum platform occupancy (in/out): 1/1
- Technical Data - Working height max. - indoor*: 25 ft 9 in (8.02 m)
- Productivity - Tires - solid non-marking: 10 × 3 × 8 in (25 × 8 × 20 cm)
- Technical Data - Length - stowed: 4 ft 5 in (1.35 m)
- Technical Data - Ground clearance - center: 2.5 in (6 cm)
- Sound And Vibration Levels - Sound Pressure level (ground workstation): < 70 dBA
