GENIE AERIAL WORK PLATFORMS — SUPER SERIES AWP30S

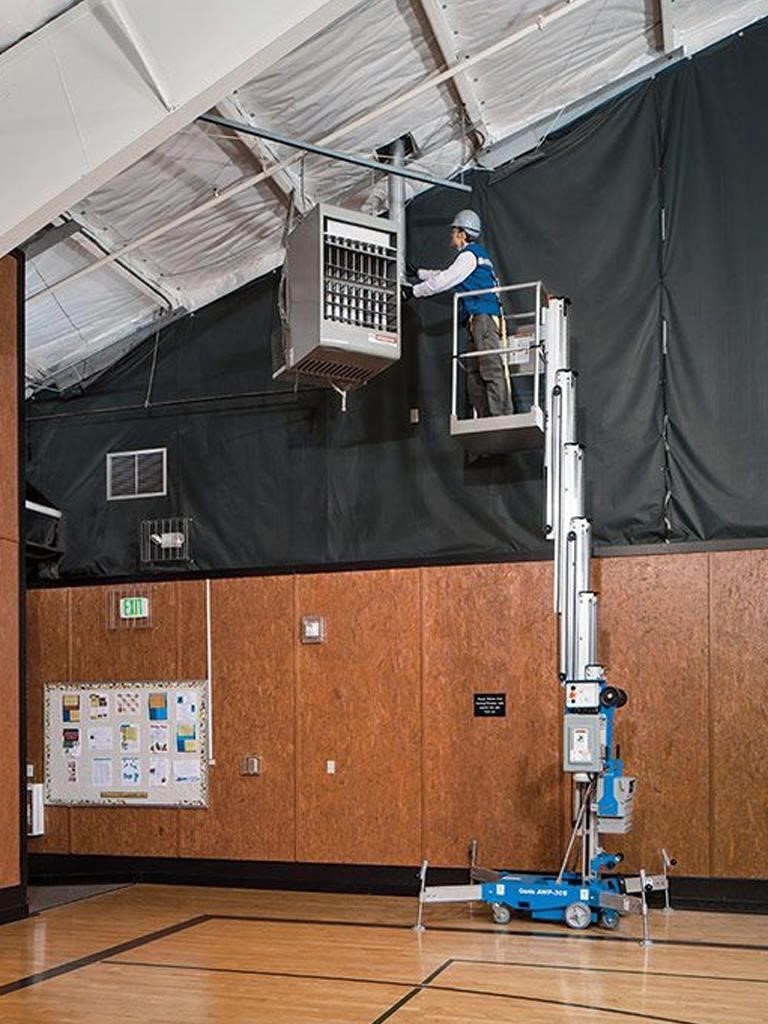

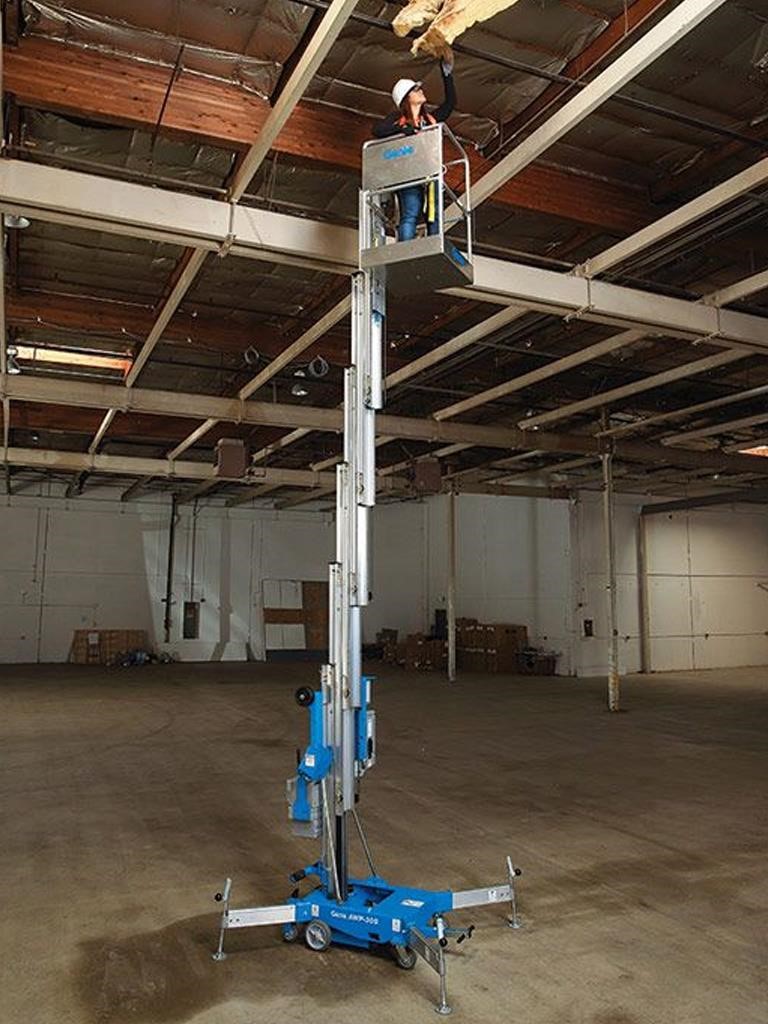

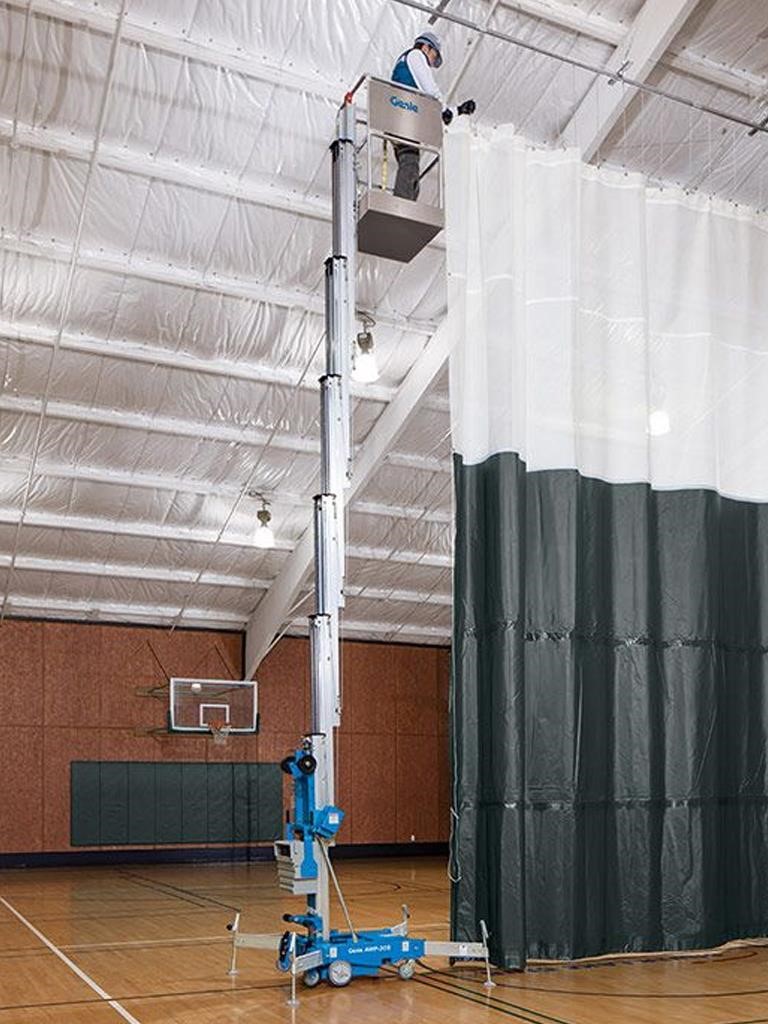

Genie® aerial work platforms are easy to use and cost effective, making them the first choice for a wide range of applications. One person can easily set them up and get to work within minutes, providing the ideal all-around tool for almost any access application. Their lightweight and compact size makes Genie aerial work platforms convenient to use in schools, churches, warehouses and more. Genie aerial work platforms also provide solutions for interior work on large construction sites, such as high rises, as well as being perfect for light-duty construction purposes.

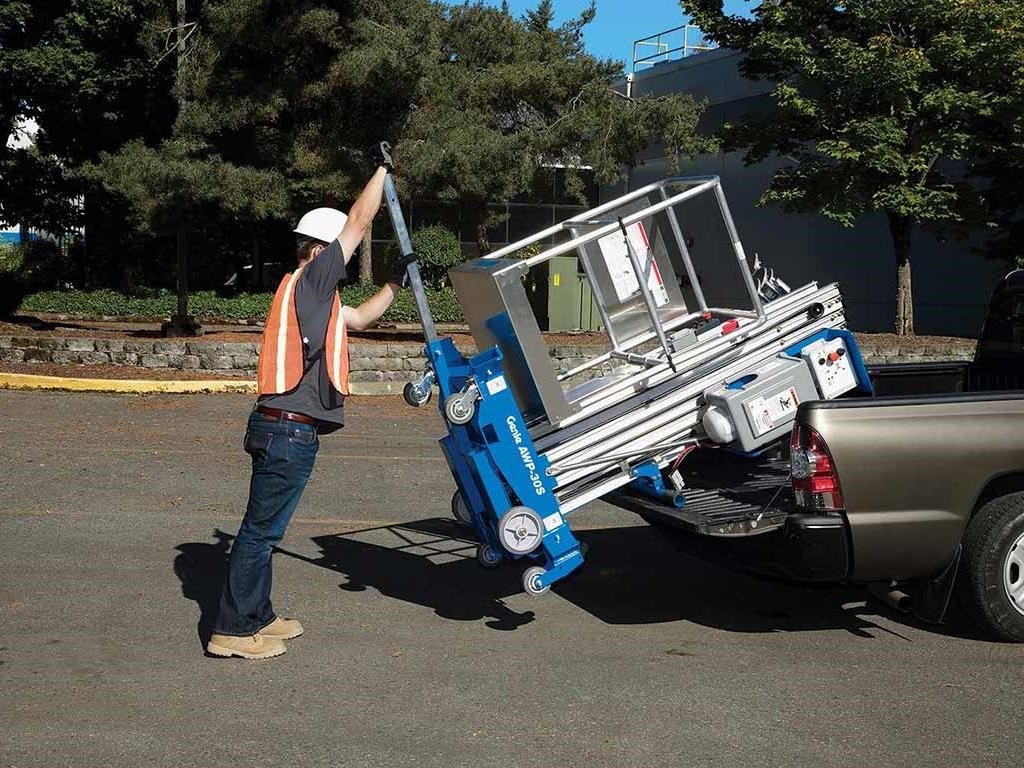

Genie® AWP®-30S Super Series aerial work platforms are an industry favorite due to their ease of use, convenience and flexibility. Quick, one-person setup and simple operation — ideal for use in rental, light-duty construction and maintenance applications.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Weight And Floor Loading**** - AC models : 777 lb (352 kg)
- Power - Power source - DC models: 12V DC
- Technical Data - Working height maximum*: 35 ft 6 in (10.8 m)
- Technical Data - NOTE: *The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height. **Gradeability applies to driving on slopes and may vary depending on options and machine configurations.
- Technical Data - Width : 2 ft 5 in (0.74 m)
- Productivity - Platform Dimensions: (l/w/h) Gated standard: 27/26/44.75 in (0.69/0.66/1.14 m)
- Productivity - NOTE: ***Weight refers to standard configuration and may vary depending on options and/or country standards.
- Productivity - Outrigger footprint (l/w) (Standard): 6 ft 4 in/ 5 ft 8 in (1.93/1.73 m)
- Technical Data - Platform height: 29 ft 6 in (9.0 m)
- Technical Data - Height - tilted back** (Standard):
- Productivity - Platform Dimensions: (l/w/h) Standard: 27/26/44.75 in (0.69/0.66/1.14 m)
- Weight And Floor Loading**** - Occupied floor pressure: 0.24 psi (1.65 kPa)
- Productivity - Lift capacity: 350 lb (159 kg)
- Technical Data - Length - tilted back**:
- Technical Data - Height - stowed (Standard): 6 ft 6 in (1.98 m)
- Weight And Floor Loading**** - NOTE: ****Floor loading information is approximate and may vary depending on options and machine configurations. It should be used only with adequate safety factors.
- Productivity - Wall access front/side (Standard): 8 in/ 1 ft 9 in (0.20/0.53 m)
- Sound And Vibration Levels - Vibrations: < 2.5m/s²
- Sound And Vibration Levels - Sound Pressure level (ground workstation): < 70 dBA
- Technical Data - Length - stowed (Standard): 4 ft 5 in (1.35 m)
- Weight And Floor Loading**** - DC models : 867 lb (393 kg)
- Productivity - Platform Dimensions: (l/w/h) Gated narrow: 26/20/44.75 in (0.66/0.51/1.14 m)
- Power - Power source - AC models: 110V/50-60 Hz | 220V/50-60 Hz
- Sound And Vibration Levels - Sound Pressure level (platform workstation): < 70 dBA
- Productivity - Corner access*** (Standard): 1 ft 10 in (0.56 m)
