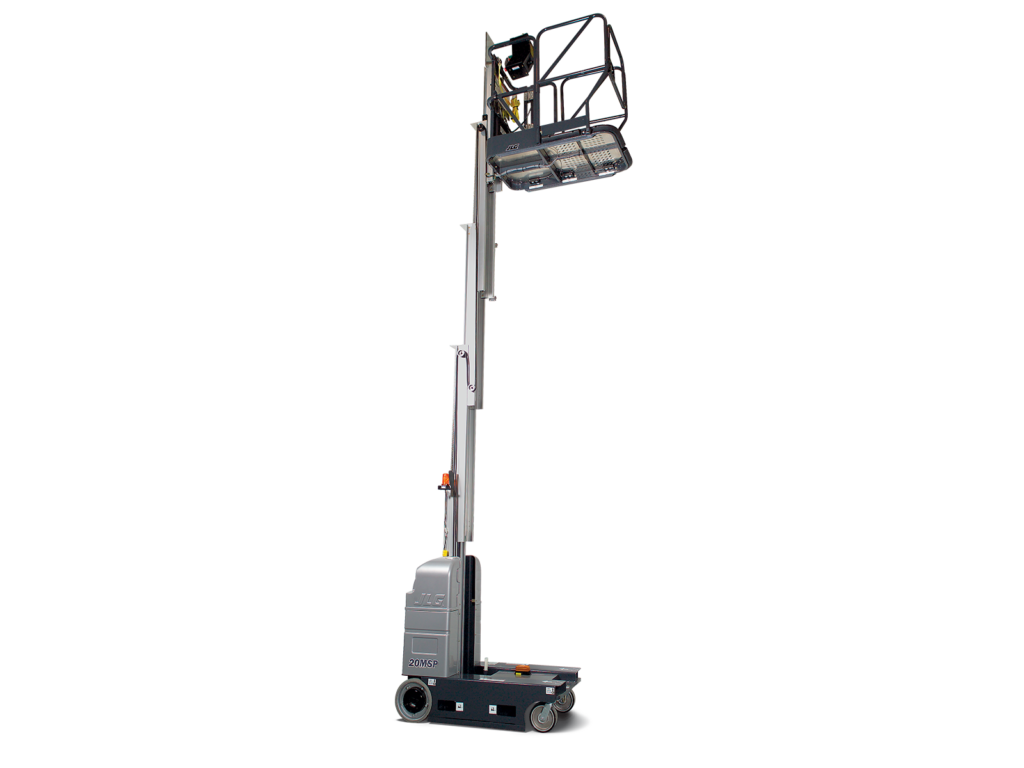

Key Specs
- Platform Height: 19 ft 5 in. / 5.92 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Elevate and descend at various speeds
- Zero turning radius for superior maneuverability
- Built-in automatic charger for less downtime on the job
- One-hand operation for increased operator comfort
- Driveable at full height for increased efficiency
Specifications
- Machine Width: 2 ft 6 in. / 0.75 m
- Machine Height: 6 ft 6 in. / 1.98 m
- Ground Entry Height: 1 ft 6 in. / 0.46 m
- Drive Speed - Platform Elevated: 0.6 mph / 0.97 km/h
- Drive Speed - Platform Lowered: 3.5 mph / 5.63 km/h
- Machine Length: 4 ft 6 in. / 1.36 m
- Drive System: 4 Brush Direct Electric
- Gradeability: 20 %
- Platform Dimension B: 2 ft 4 in. / 0.71 m
- Wheel Size - Front Caster: 8 x 2.5"
- Platform Dimension A: 4 ft / 1.22 m
- Maximum Lift Height: 19.4 ft / 5.91 m
- Wheel Size - Rear: 12.62 x 4"
- Ground Clearance: 2 in. / 0.05 m
- Machine Weight: 2425 lb / 1099.96 kg
- Working Height: 25 ft 5 in. / 7.75 m
- Batteries: 2 Sealed 100 amp-hr Glass Mat (AGM)
- Maximum Drive Height: 19 ft 5 in. / 5.92 m
- Platform Capacity: 400 lb / 181.44 kg
Alta Financial Services
Get in touch with our Financial Services department today.
View Financing Options- Zero turning radius for superior maneuverability
- Elevate and descend at various speeds
- Driveable at full height for increased efficiency
- One-hand operation for increased operator comfort
- Built-in automatic charger for less downtime on the job
