Key Specs
- Maximum Lift Capacity: 9000 lb / 4082.33 kg
- Maximum Lift Height: 43 ft / 13.11 m
- Maximum Reach: 30 ft 5 in. / 9.27 m
Key Features

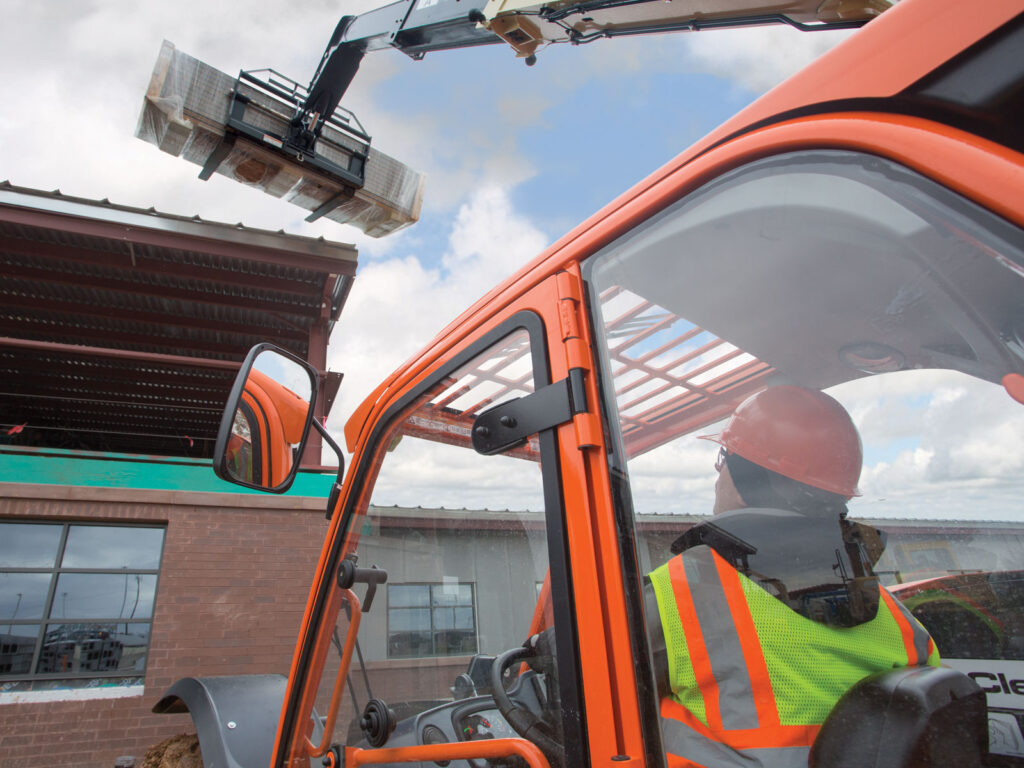

- Enhanced operator comfort—spacious cab, intuitive single joystick and integrated arm rest
- Maximum serviceability— extended service intervals, easy-to-access parts and durable components for less overall maintenance
- Greater operator confidence— better visibility, Stabil-Trak rear axle stabilization, precision gravity lowering system, optional reverse sensing system and reversing camera
- Optional 74 hp engine doesn’t require Diesel Exhaust Fluid (DEF) and meets Tier 4 Final regulations
- Increased versatility—wide range of attachment options
Specifications
- Lift Capacity at Full Height: 7000 lb / 3175.15 kg
- Speed - Maximum Telescope Out: 15 sec.
- Drawbar Pull: 22751 lb / 10319.68 kg
- Speed - Maximum Travel: 19 mph / 30.58 km/h
- Capacity - Fuel Tank: 38.3 gal. / 144.98 L
- Operating Vehicle Weight: 24912 lb / 11299.89 kg
- Frame Leveling: 10 Degrees
- Machine Length: 19 ft 9 in. / 6.02 m
- Service Brake Type: Wet Multi-Disc
- Maximum Reach: 30 ft 5 in. / 9.27 m
- Engine Manufacturer: Cummins
- Lift Capacity at Max Reach: 1200 lb / 544.31 kg
- Engine Horsepower: 110 hp / 82.06 kW
- Speed - Maximum Lower: 9 sec.
- Transmission Type: Powershift
- Ground Clearance: 1 ft 5 in. / 0.43 m
- Outriggers or Stabilizers: No
- Transmission - Nr Reverse Gears: 3
- Axle-Front: High Bias, Limited Slip
- Maximum Engine RPM: 1500 rpm
- Machine Height: 8 ft 2 in. / 2.49 m
- Maximum Lift Height: 43 ft / 13.11 m
- Machine Width: 8 ft 1 in. / 2.46 m
- Outside Turning Radius: 12 ft / 3.66 m
- Speed - Maximum Telescope In: 13 sec.
- Engine Model: QSF3.8L Tier 4 Final
- Function Pump Type: Load Sensing Piston
- Maximum Lift Capacity: 9000 lb / 4082.33 kg
- Axle-Rear: Planetary
- Wheelbase: 11 ft 3 in. / 3.43 m
- Transmission - Nr Forward Gears Standard: 4
- Load Center: 2 ft / 0.61 m
- Tire Size: 370/75-28
