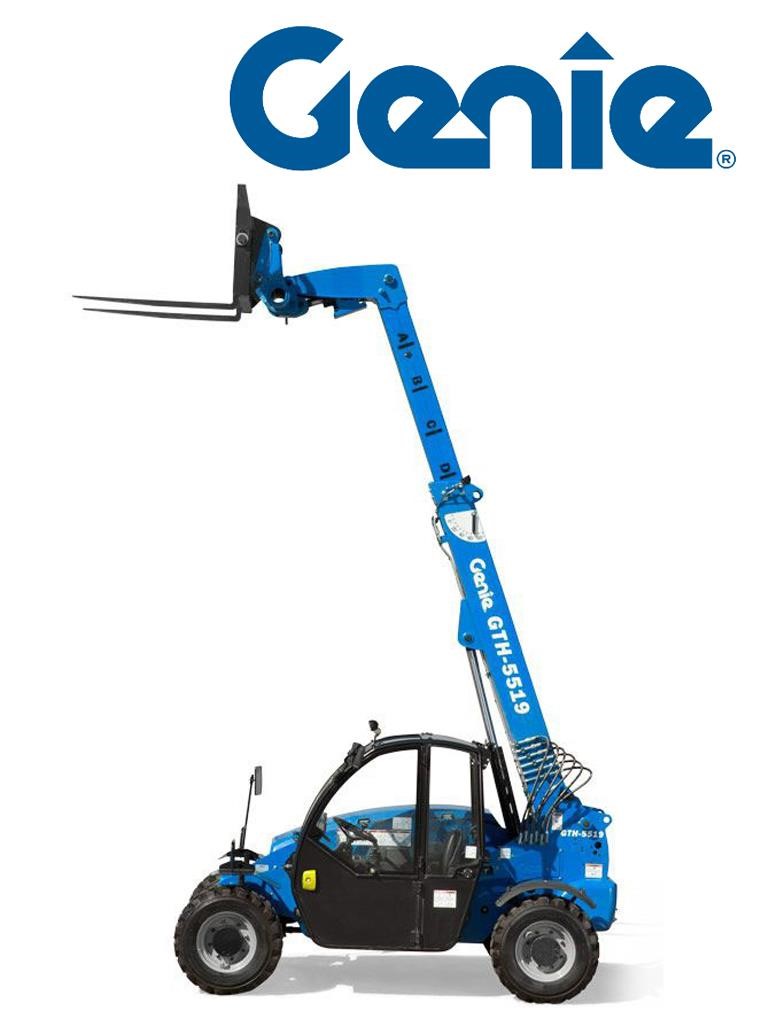

GENIE TELEHANDLER — GTH5519
With outstanding design and performance, Genie® GTH™ telehandlers provide all-around utility to answer virtually all your work site needs. Available in six power-packed models, Genie telehandlers offer exactly what you need for productivity in limited-access areas or applications where high reach is needed. With a wide range of available attachments, Genie telehandlers can easily handle even the most demanding jobs.
The Genie® GTH™-5519 compact telehandler is the perfect choice for tasks both large and small. Easy to maneuver and transport, and convenient to service, it meets the needs of most construction, masonry, landscape and agricultural applications.
FEATURES
• Comfortable, spacious cab with tilt steering and ergonomic controls, including an easy-to-use, multifunction joystick control for precise positioning
• Full-time planetary four-wheel drive and four-wheel steer
• Variable-speed hydrostatic drive
• Manual Genie Quick-Attach™ system for a variety of attachments
OPTIONS
CAB CONFIGURATION
• Closed cab: Heater, defrost, wipers, washer, split door
• Closed cab: AC, heater, defrost, wipers, washer, split door
• Front and top glass
• Rear Proximity Alarm
• Fire extinguisher
CHASSIS OPTIONS
• Lift Connect Telematics
• Lift Connect with Access Manager upgrade
• Brick guard
• Electric oil pan heater
• Lojack stolen vehicle recovery system
• Positive air shutdown system
• Flashing Beacon
• Work lights: High output LED cab, boom, rear
• Road and work lights: High output LED front, cab, boom, rear
• Air-filled non-marking tires
• Air-filled rough terrain tires
• Air-filled turf tires
• Foam-filled rough terrain tires
• Solid rough terrain tires
BOOM OPTIONS
• Genie hydraulic Quick-Attach™ system
CARRIAGE/ATTACHMENT OPTIONS
• Quick-Attach (QA) Carriage, 48in / 1.2m
• QA Side shift carriage, 48in / 1.2m (4in/.1m R/L)
• QA Side tilt (rotating) carriage, 48in / 1.2m
• Universal skid steer adapter
• QA Bucket, bolt-on cutting edge, 66in / 1.67m (.5/.65yd³)
• QA Scrap grapple bucket, 78in / 1.9m (.68/.83yd³)
• QA Truss boom, 6ft / 1.83m, 2000lb/907kg
• Pallet forks, 48in (1.75 × 4 × 48in) / (.04x.1 × 1.2m) – set of 2
• Pallet forks, 60in (2 × 4 × 60in) / (.05x.1 × 1.5m) – set of 2
• Cubing tines, 48in (2 × 2 × 48in) / (.05x.05 × 1.2m) – set of 4
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Productivity - Lift capacity at maximum height: 4,400 lbs (1,996 kg)
- capacity: 5500
- Technical Data - Wheelbase: 7 ft 6 in (2.29 m)
- Power - Electrical system voltage: 12V
- fuelcapacity: 15.8
- Technical Data - Height, stowed: 6 ft 6 in (1.98 m)
- shippinglength: 147
- shippinglengthUnit: inch
- Power - Battery: 720 CCA at 0°F (-18°C)
- Productivity - Maximum lift capacity: 5,500 lbs (2,495 kg)
- shippingweight: 10360
- Technical Data - Weight: 10,360 lbs (4,700 kg)
- fuelcapacityUnit: gallon
- ropstype: Enclosed
- Technical Data - Maximum lift height: 18 ft 10 in (5.74 m)
- Technical Data - Width: 5 ft 11 in (1.80 m)
- horsepower: 74
- Technical Data - Ground clearance, center: 1 ft 2 in (0.36 m)
- Technical Data - Ground clearance, axle: 10 in (0.25 m)
- Productivity - Draw bar pull / Break out force: 10,250 lbs (4,649 kg)
- horsepowerUnit: horsepower
- Productivity - Tires, standard size: 12 x 16.5 in, 10 ply (0.30 × 0.42 m, 10 ply)
- basegroundclearance: 14
- shippingheight: 78
- Technical Data - Fork cross section: 1.6 x 4 in (40 x 100 mm)
- Technical Data - Reach at maximum height: 1 ft 10 in (0.56 m)
- Power - Hydraulic tank capacity: 18.5 gal (70 L)
- basedrivespeedUnit: miles/hour
- Power - Alternator: Deutz TCD 2.9 - 95 amp
- Power - Hydraulic system capacity (w/tank): 31.7 gal (120 L)
- basedrivespeed: 15
- capacityUnit: pound
- basegroundclearanceUnit: inch
- Productivity - Drive speed: 15 mph (24.1 km/h)
- Productivity - Auxiliary hydraulic pressure: 3,918 psi (270 bar)
- maxforwardreachUnit: inch
- shippingheightUnit: inch
- shippingwidthUnit: inch
- Productivity - Auxiliary hydraulic flow: 17 gpm (64 lpm)
- wheelbase: 80
- maxliftheightUnit: inch
- Power - Power source: Diesel
- Technical Data - Length, stowed (without forks): 12 ft 3 in (3.73 m)
- shippingweightUnit: pound
- drive: 4WD
- Power - Fuel tank capacity: 15.8 gal (59.8 L)
- maxliftheight: 225.98425173800000
- Productivity - Turning radius, outside (4WS): 11 ft (3.35 m)
- Technical Data - Maximum forward reach: 11 ft 3 in (3.43 m)
- Productivity - Lift capacity at maximum reach: 1,900 lbs (862 kg)
- wheelbaseUnit: inch
- maxforwardreach: 132
- shippingwidth: 71
