Key Specs
- Maximum Lift Capacity: 15650 lb / 7098.72 kg
- Maximum Lift Height: 43 ft 7 in. / 13.28 m
- Maximum Reach: 31 ft 1 in. / 9.47 m
Key Features

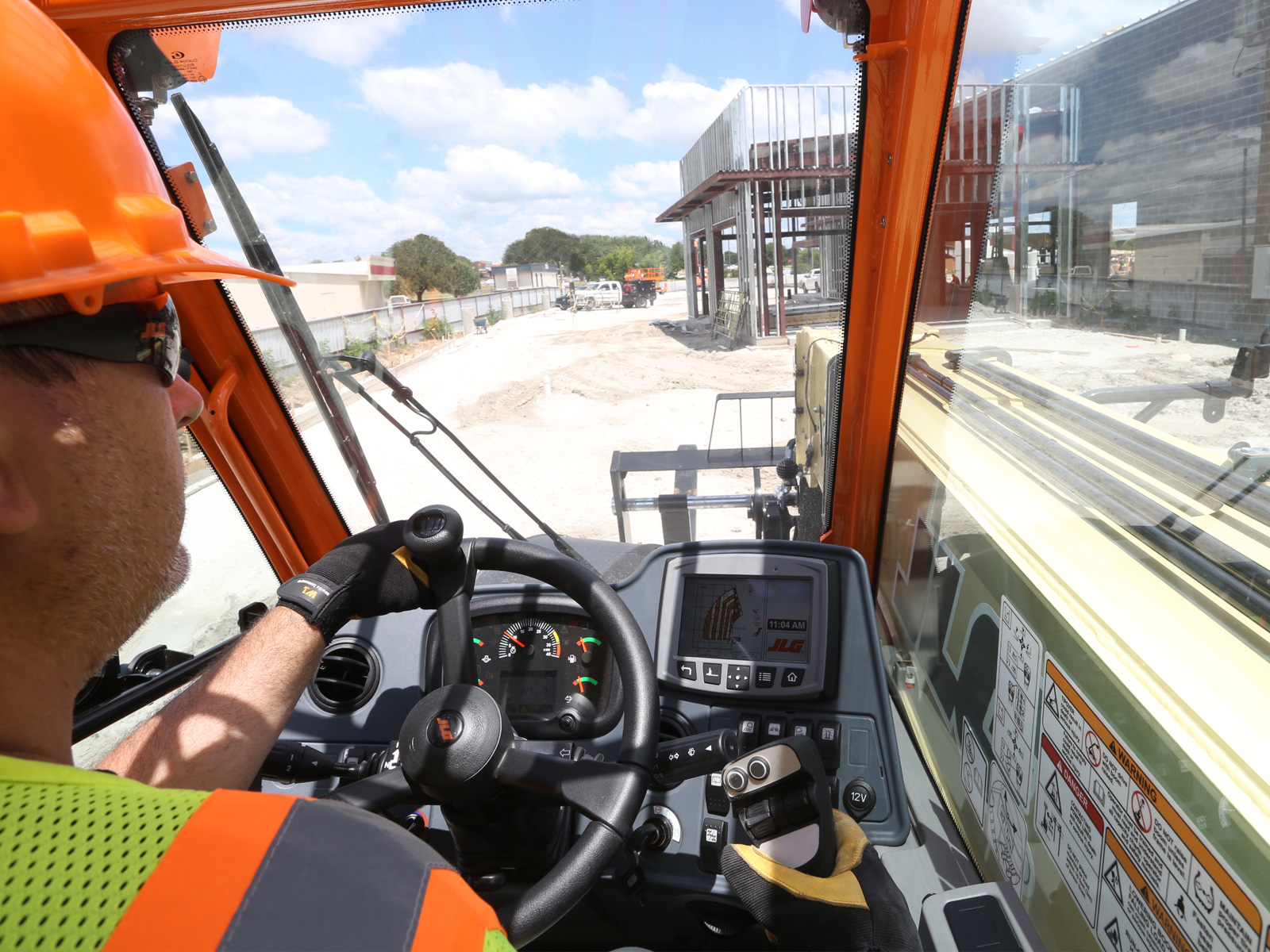

- Operator Comfort – Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
- Operator Confidence – Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
- Versatility – Integrated tow hitch and a wide range of attachments for more options on the job site
- SmartLoad Technology – Automatic attachment recognition and real-time load monitoring for enhanced productivity
Specifications
- Lift Capacity at Max Reach: 2000 lb / 907.18 kg
- Maximum Lift Height: 43 ft 7 in. / 13.28 m
- Ground Clearance: 1 ft 7 in. / 0.48 m
- Wheelbase: 10 ft 7 in. / 3.23 m
- Axle-Rear: Oscillating
- Load Center: 2 ft / 0.61 m
- Transmission Type: Hydrostatic
- Machine Height: 8 ft 9 in. / 2.67 m
- Frame Leveling: 8 Degrees
- Speed - Maximum Lower: 13.6 sec.
- Lift Capacity at Full Height: 6750 lb / 3061.75 kg
- Speed - Maximum Telescope Out: 15.8 sec.
- Outside Turning Radius: 13 ft 2 in. / 4.01 m
- Function Pump Type: Load Sensing Piston
- Service Brake Type: Wet Multi-Disc
- Speed - Maximum Travel: 20 mph / 32.19 km/h
- Machine Width: 8 ft 1 in. / 2.46 m
- Engine Manufacturer: Deutz
- Operating Vehicle Weight: 33660 lb / 15267.92 kg
- Tire Size: 17.5-25 SGG
- Machine Length: 20 ft 3 in. / 6.17 m
- Capacity - Fuel Tank: 39 gal. / 147.63 L
- Axle-Front: High Bias, Limited Slip
- Engine Horsepower: 134 hp / 99.96 kW
- Speed - Maximum Telescope In: 12.3 sec.
- Speed - Maximum Lift: 18.3 sec.
- Maximum Lift Capacity: 15650 lb / 7098.72 kg
- Maximum Reach: 31 ft 1 in. / 9.47 m
- Drawbar Pull: 23000 lb / 10432.62 kg
- Maximum Engine RPM: 2200 rpm
- Engine Model: TCD 3.6L Tier 4 Final
- Outriggers or Stabilizers: No
Alta Financial Services
Get in touch with our Financial Services department today.
View Financing Options- SmartLoad Technology - Automatic attachment recognition and real-time load monitoring for enhanced productivity
- Operator Confidence - Precision gravity lowering system, soft stop boom control, optional reverse sensing system and reversing camera
- Operator Comfort - Spacious cab with enhanced visibility, 2-speed hydrostatic transmission and optional boom float and ride control
- Versatility - Integrated tow hitch and a wide range of attachments for more options on the job site
