W45ZHD

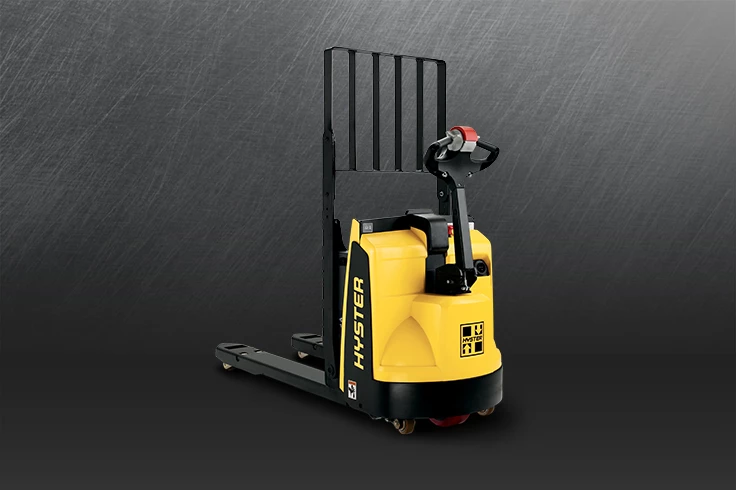

HYSTER PALLET TRUCK — W45ZHD

Designed to be tough, the walkie pallet truck series is also intelligent. Its exceptional maneuverability, ergonomics and performance stems from innovative design and engineering. With a vast array of option combinations and standard features, the W45ZHD ensures that operators are moving loads as safely, quickly and efficiently as possible at every stage of pallet handling.

STRENGTH AND DURABILITY
The W45ZHD combines a heavy duty steel drive frame with a highly engineered drive unit casting, making this one of the heaviest drive unit frames in the industry. Optimally placed as the backbone of the truck, the two create the strongest drive end in its category. The heavy duty casting replaces fabricated components for increased strength and durability, and concentrates all of the forces of the truck to an intelligent, highly engineered component.

LOW COST OF OPERATION
The W45ZHD walkie is designed with durable and easily serviceable components to help save you money.
• Heavy-duty torsion bar provides a more uniform loading of pins and linkage rods, reducing wear and tear.
• Thickest bronze bushings available provide the most contact area, resulting in improved distribution of force and increased service life.
• Steel drive frame enhances stability and durability, decreasing service costs and damage to loads.
• Optional casters are reinforced with heavy-duty casting. Coil springs have been replaced with poly block, reducing cost and service requirements.
• Large, maintenance-free turntable steer bearings distribute and handle driving and steering forces better than small taper bearings, lowering cost of ownership.
• AC traction motor is maintenance-free and external speed sensor is easy to access, reducing cost of maintenance.

BUILT FOR COMFORT
Our intelligently designed ergonomics make the W45ZHD walkie pallet truck easier and more comfortable to operate from the mid-mounted, shortened handle to the vertically mounted drive motor assembly.
• Tiller has a light hold down effort. Little exertion is needed by the operator to move the handle to the run zone and easily maintain its position there.
• Mid-mounted control handle placement has been designed to balance the constraints of steer effort, visibility and maneuverability.
• Large turntable bearing and standard rubber tire reduce the force required to turn the steer tire. The less energy the operator must use to steer the truck, the more efficiently the pallet will be moved.

ENHANCED PRODUCTIVITY
Hyster Intelligent Lift™ enables the operator to start transporting the pallet before the unit is at full lift. The W45ZHD equipped with this option will automatically lift the pallet to maximum fork height without having to continually hold the lift button. As a result of the simultaneous action of lifting and traveling, cycle times are reduced by up to 25%.

Turtle Function – When the handle is in the run zone, and the turtle functionality is selected, the W45ZHD latches into turtle mode, giving the operator greater confidence in congested applications. When the handle is in the upper brake zone, the operator can press and hold the turtle button to maneuver the truck. This minimizes the truck profile, improving maneuverability.

BEVERAGE DELIVERY OPTION
Hyster understands the daily challenges that delivery drivers face trying to get product from the trailer to the store. It is with this in mind, that we developed the Direct Store Delivery (DSD) package for the W45ZHD. The industry exclusive, patented design of the DSD handle allows the operator full command of the truck’s functionality with the handle in the full upright position. One hand throttle activation means the operator can stay safely positioned beside the truck with complete visibility of the end of the lift gate. A moveable load backrest allows operators to handle loads and pallets of multiple shapes and sizes, while the load retention strap keeps those loads secure.

STANDARD EQUIPMENT
• 46” heavy duty boxed forks
• 27” fork spread
• Standard construction – operating temperatures: +32° F to + 120° F
• Press-on smooth rubber drive tire (10” x 4”)
• Single polyurethane load wheels (3.25” X 4.5”)
• Greaseable load wheel bearings
• Engineered composite control handle
• Direction reversing switch
• 8.2” X 26.5” battery compartment
• 24-volt AC transistor controlled electrical system
– Sealed transistor traction controller
– Vertically mounted AC traction motor
– Auto Deceleration System w/regenerative braking
• Heavy duty drive unit
• Multifunction display with hour meter
– Battery state of charge
– Low battery lift interrupt
– Fault indicator
• On-board diagnostic and self test
– Program, test and diagnose
– Password protected
• Three pre-programmed performance modes
• Two operator selectable performance levels
• Heavy duty lift pump and single hydraulic lift cylinder
• Lift time-out at full lift height
• Ramp hold with anti-rollback on grade
• One piece impact resistant power unit cover
• Soft touch keyed ignition switch
• Cowl-mounted power disconnect switch
• IP65 sealed connectors
• Electro-mechanical park brake
• Electronic horn
• Turtle speed mode selection with handle in full upright position
• Heavy duty pallet fork design
– 3.25” lowered / 5.12” lift ht. / 8.25” overall raised ht.
– Heavy duty torsion bar linkage connection
– Heavy duty, long life lift linkage with lubrication fittings
– “X” groove style greaseable pivot bushings
– Hardened, bolt retained flag linkage pins
• Operating manual
• 12 months / unlimited hour manufacturer’s warranty
• 36 months / 6,000 hour powertrain warranty
• Lifetime main frame warranty

OPTIONAL EQUIPMENT
• 9.1” x 25.5” battery compartment
• 6.0” x 26.5” battery compartment
• Power alternatives
– Wet cell battery power pack
– Absorbed Glass Mat (AGM) maintenance free battery power pack
– Lithium-Ion Advanced Performance Power System
• Battery charger
– 20 amp 110 volt on-board high frequency smart charger
– 20 amp 220 volt on-board high frequency smart charger
• Cast aluminum handle
• Delivery control handle
• Fork lengths
– 34” – short tip
– 40.3” – short tip
– 42” – short tip
– 48” – standard tip
• 22” overall fork width
• Cooler/freezer package – operating temperatures: 0° F to +120° F
• SubZero freezer package – operating temperatures: -40° F to +120° F
• Wash down package – operating temperatures: 0° F to +120° F
• Extreme corrosion wash down package
– operating temperatures: 0° F to +120° F
• Drive tire options:
– 10” x 4” pressed-on-smooth polyurethane
– 10” x 4” mold-on smooth polyurethane
– 10” x 4” pressed-on non-marking rubber
– 10” x 4” pressed-on red EZ polyurethane grooved
– 10” x 4” molded-on vulkollan polyurethane
• Single vulkollan load wheel
• Stainless steel greaseable or sealed bearing
• Stabilizers
– Adjustable bolt-on stability tabs
– Heavy duty quick adjust casters with greaseable or sealed wheel and pivot bearing
• Load backrest
– 48” high bolt-on
– 54” high bolt-on
– 60” high bolt-on
– 72” high bolt-on
– 58.5” high moveable
• Load backrest mounted or magnetic battery mounted convenience tray
• Brake override drive / tow switch
• Hyster Intelligent Slow DownTM
• Hyster Intelligent LiftTM
• Self-adjusting audible alarm

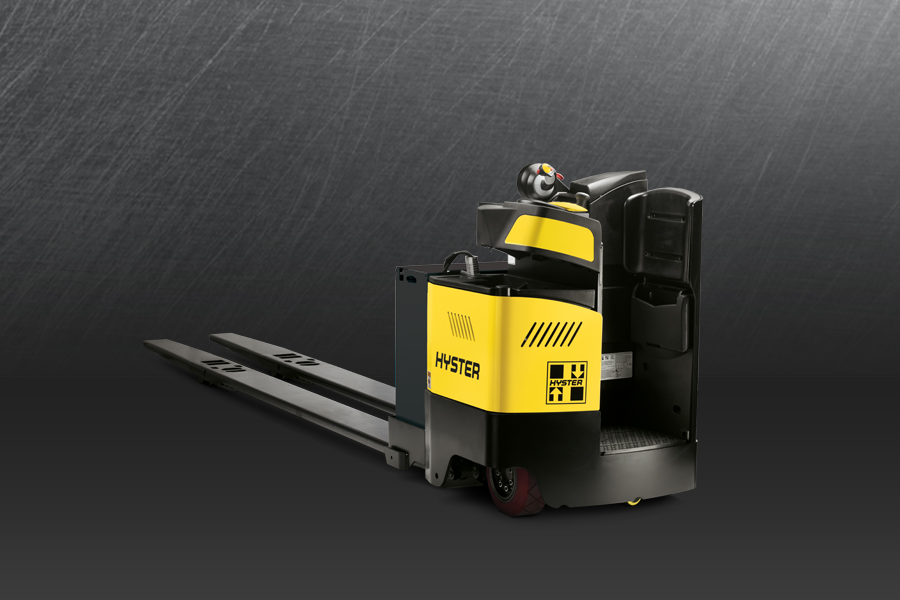

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications, unless otherwise listed, are for a standard truck without optional equipment. Performance specifications are affected by the condition of the vehicle and how it is equipped, as well as by the nature and condition of the operating area. Specifications are subject to change and the proposed application should be discussed with your authorized Hyster Company Dealer.
