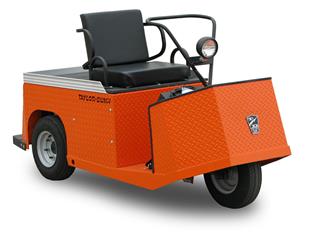

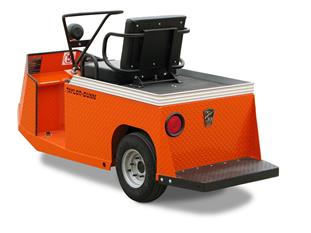

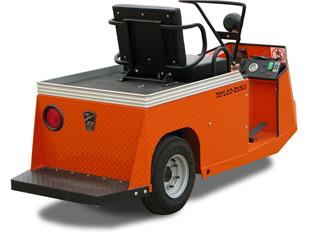

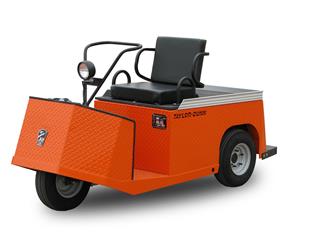

The versatile design of the SS-534 allows users to convert the vehicle from personnel carrier to burden carrier in a matter of seconds. This vehicle can carry up to two people or 500 lbs. of load on the job site.

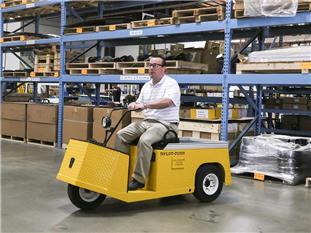

With its three wheel short turning radius design, The SS-534 can maneuver dependably around warehouses, industrial complexes, resorts, hotels, shopping malls, hospitals and other commercial complexes.
Its all welded steel unitized body and frame is built to last for years of use. Modularized control system design provides ease of maintenance on all electrical systems. Tiller loop steering, 10 mph speed, and on-board charger provide safety, efficiency and convenience during daily operation.
Specifications
- Dimensions: Outside Turning Radius: 75" (190.5cm)
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Reduction Drive: Controller: Series
- Dimensions: Width: 30" (76 cm)
- Performance: Range: 20 miles (32 km)
- Dimensions: Length: 76.5" (194 cm)
- Chassis: Tires: Rear: 4.80 x 8 pneumatic Front: 4.80 x 8 Load Range B, Pneumatic
- Chassis: Steering: Manual, Tiller, Front Fork
- Interior: Seats: Driver: Passenger:
- Dimensions: Height: Less Cab: 41.5" (105 cm) With Cab: N/A
- Performance: Passengers: 1
- Performance: Load Capacity: 500 lbs. (227 kg
- Dimensions: Weight: 701 lbs. (309 kg.)
- Performance: Tow Capacity: 4,250 lbs. (1,928 kg)
- Dimensions: Hitch Height: 12" (30.5cm)
- Chassis: Brakes: Rear: mechanical drum Front: N/A Parking: Foot
- Dimensions: Deck: Width: 27" (68.6cm) Length: 17" (43.2cm) Height: 24" (60.96cm)
- Dimensions: Wheel Base: 53.5" (135.9cm)
- Chassis: Frame Construction: Steel unitized body, heavy duty 16 gauge diamond plate
- Chassis: Suspension: Rear: Coil springs Front: Shock absorber
- Chassis: Battery: Type: Four 210 amp hr., 6 volt (lead acid) System Voltage: 24 Charger: Built-In
- Interior: Instrumentation: Battery discharge indicator, forward/reverse selector, key switch, electric horn, DC/DC Converter
- Performance: Speed: 10 mph (16.1 km/h)
