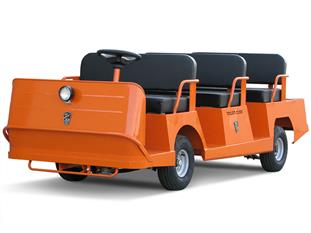

Equipped with a 36 volt GT drive train, BT-280 36V GT can travel at speeds of 10.5 mph, while providing a range of 24 miles in a single charge.
Low step height and increased visibility while traveling at low speeds in congested areas make BT-280 an ideal solution for your personnel moving applications. Low noise and zero pollution accompanied with low operating and maintenance cost makes BT-280 the most cost effective solution when compared to its gasoline alternatives.
BT-280, equipped with a roll out battery box, can provide extended range for your application. Ideal for use in public venues, BT-280 is one of the safest and most economical ways to transport your customers or employees.
Specifications
- Performance: Range: 24 miles (38 km)
- Chassis: Suspension: Rear: Leaf springs w/dual rear shocks Front: Leaf springs
- Performance: Load Capacity: 3,000 lbs. (1,360 kg.)
- Dimensions: Width: 50" (127 cm)
- Dimensions: Hitch Height: 12.5" (31.8cm)
- Chassis: Powertrain: Type: Electric Power: 110/220V, 50/60Hz Transmission: Transaxle Assembly, Sealed Helical Gear Primary Reduction to Hypoid Ring and Pinion Gears Drive: Controller: SEM
- Dimensions: Weight: 1,481 lbs. (643 kg.)
- Performance: Passengers: 8
- Dimensions: Length: 136.5" (347 cm)
- Chassis: Tires: Rear: 5.70 x 8 pneumatic Front: 5.70 x 8 Load Range C, Pneumatic
- Dimensions: Wheel Base: 78" (198cm)
- Performance: Speed: 10 mph (16.1 km/h)
- Dimensions: Deck: Width: N/A Length: N/A Height: N/A
- Performance: Tow Capacity: 12,500 lbs. (5,682 kg)
- Dimensions: Outside Turning Radius: 160" (411cm)
- Interior: Seats: Driver: Passenger:
- Interior: Instrumentation: Smart View Display (Battery status indicator, hour meter, system status monitor, speedometer), reverse buzzer, forward/reverse selector, key switch, electric horn
- Chassis: Brakes: Rear: Hydraulic discs Front: Optional Parking: Hand
- Dimensions: Height: Less Cab: 44" (112 cm) With Cab: N/A
- Chassis: Frame Construction: Steel unitized body with heavy duty 16 gauge smooth plate
- Chassis: Battery: Type: Six 217 amp hr., 6 volt (lead acid) System Voltage: 36 Charger: Built-In
- Chassis: Steering: Manual, Re-circulating Ball
