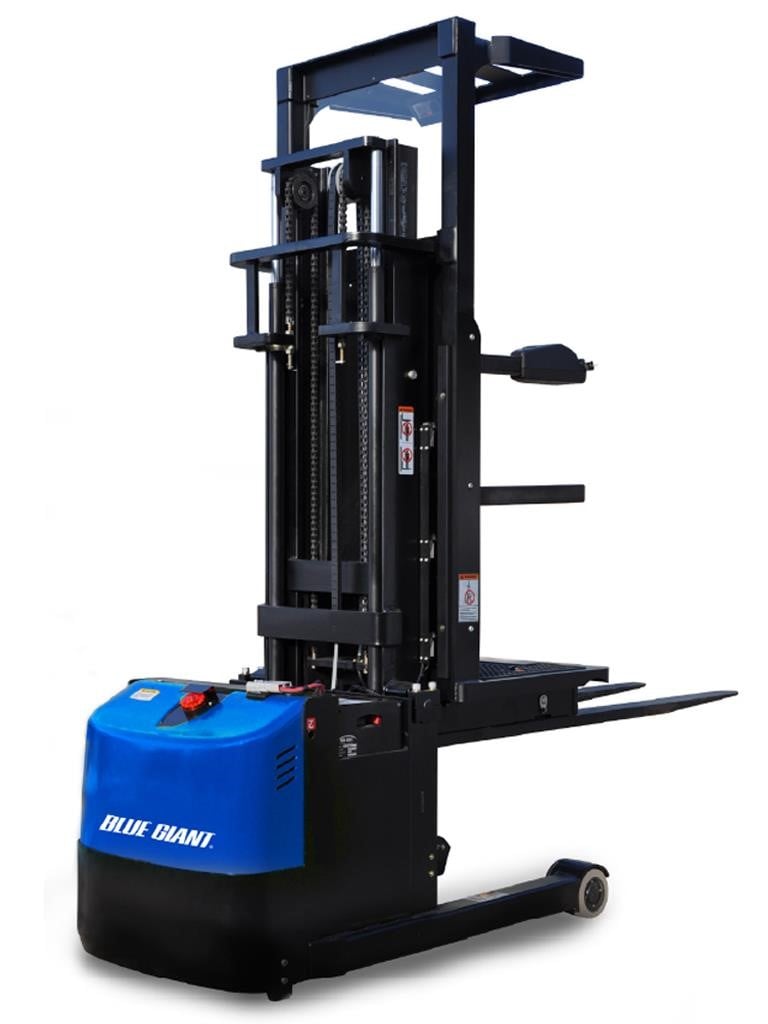

Blue Giant BG2-144

BLUE GIANT BG2-144 — MID LEVEL ORDER PICKER

The BG2-126/144 combines the compact design and exceptional maneuverability of our BG1 with attributes of a counterbalanced forklift. The result is a versatile machine that can be used for mid-level order picking, and staging of pallets.

Utilizing many of the same reliable components as the BG1, the BG2-126/144 comes in two configurations. The BG2-126 can elevate an operator to 132″ and attain fork elevations of 126″. The BG2-144 can elevate an operator to 150″ and attain fork elevations of 144″. The BG2-126/144 requires a tether and harness to be worn and comes with both an overhead guard and pallet clamp. Both BG2 vehicles offer travel speeds up to 4.5 mph at ground level with speed reduction based on elevation to slow speed at maximum height.

BG2-126/144 vehicles can be used to effectively order pick from mid-level locations and improve access to pick faces close to the floor. Travel is provided by a high efficiency AC drive motor on each unit that can be programmed through the onboard LCD dash. Power comes from a 340AH industrial battery.

CAPACITY

• 2,000 lb (907 kg) at 24″ LC on forks

• 300 lb (136 kg) operator’s compartment

STANDARD FEATURES

• 42″ forks with pallet clamp

• Anchor, operator harness & tether

• Overhead guard

• Non-marking tires

• Rear flashing light

• Battery compartment rollers

• Low 9″ step height compartment

AVAILABLE OPTIONS

• 12-volt accessory power supply

• 24-volt industrial battery

• 24-volt external charger

BATTERY INFORMATION

• Minimum battery weight: 700 lb (318 kg)

• Compartment dimensions: 32″ x 11″ x Open

• Connector: Anderson 175 Grey – A-11

ELECTRICAL

• Dual 24-volt ZAPI ACO travel and power steering controllers

• LCD dashboard displays hour meter, battery state, travel speed, and travel direction indicator

• AC drive motor

• Low-maintenance brushless design

• Selectable travel speed settings

BRAKES

• Regenerative braking when coasting and plug braking

• Electromagnetic parking brake

OPERATION / CONTROLS

• Ergonomic fingertip control for travel, lift, and lower functions

• Roomy operator compartment

• Retractable compartment guard rails keep the operator secure

• On/off key switch and horn

MAST

• Heavy-duty I-beam design

• Steel mast channels and side mounted lift cylinders

CHASSIS

• Three-point chassis design

• 180° drive motor steering arc

• Powerhead mounted stability casters mounted on powerhead

STANDARD EQUIPMENT

• Non-marking tires

• Rear flashing light

• Battery compartment rollers

• 42″ forks with pallet clamp

• Overhead guard

OPTIONAL EQUIPMENT

• 12-volt accessory power supply

• 24-volt industrial battery

• 24-volt external charger

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.
