Electric Pallet Trucks

From tractor trailer lift gates to narrow store aisles, the Yale® MPB045VH with the direct-store-delivery (DSD) package equips operators for retail delivery success.

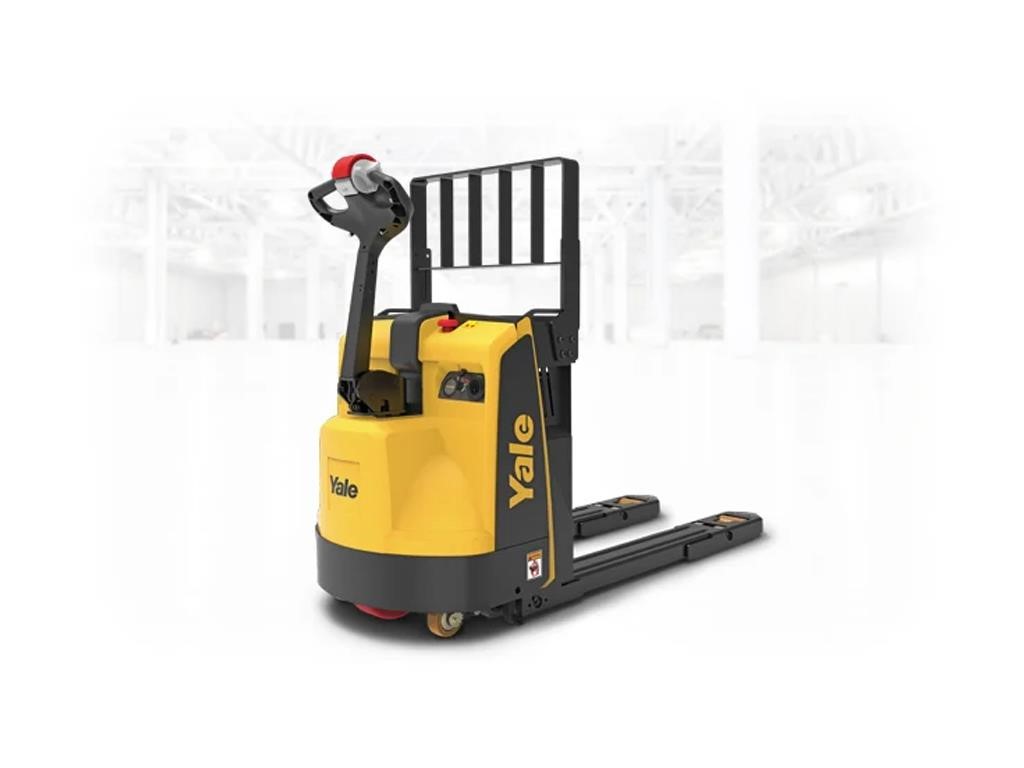

YALE MOTORIZED WALKIE PALLET TRUCK — MPB045VG

With a small footprint and productivity-enhancing features, the walkie pallet truck provides operators the confidence to move loads quickly and efficiently in a variety of applications including loading and unloading trailers and trucks, direct-store delivery, horizontal transport, in-store replenishment and stocking, and dock work.

ERGONOMIC ADVANTAGES
A comfortable operator is a productive operator. From a shortened handle to the vertically mounted drive motor assembly, our walkie pallet trucks are more comfortable, compact and easier to operate than ever before.

• Large handle run zone enables comfortable operation for a wide range of operators
• Shorter, mid-mounted handle brings operators closer to the truck, optimizing visibility and maneuverability
• Light hold-down effort for tiller requires little exertion by the operator to move handle and maintain position

SMART FEATURES
With its small footprint, the MPB-VG is designed to help operators confidently move pallets in and out of tight areas. And with several exclusive, productivity-enhancing features, you can move product quickly and efficiently.

• Smart Lift feature allows operators to begin travel before the unit is at full lift, helping reduce cycle times up to 25%
• Smart Slow Down automatically reduces truck speed in corners, helping improve load stability and operator confidence

DURABLE CONSTRUCTION
You need a truck that can handle rigorous duty cycles — moving across various surfaces, engaging pallets, starting, stopping and starting again.

That’s why we strengthened every inch of our walkie pallet truck. From enhanced frame stability and reinforced forks to a tough, protective undercarriage and more — we’ve designed the MPB-VG to stand up to your toughest challenges.

• Hardened flag pins, 14% larger than competition at all connections
• Resistant to rusting and seizing up when wet
• Bronze bushings with a twice as thick wall compared to competitors
• ‘x’ groove bushings at all pivot points helps retain grease, reduce wear and/or frequent replacement

DIRECT STORE DELIVER (DSD) PACKAGE
The Direct Store Delivery (DSD) package for the MPB045-VG is specifically designed for the unique challenges of moving product from trailer to store.

• Stay charged on the go — Charge lithium-ion batteries anytime, anywhere with a 120V outlet – even in the trailer between delivery stops
• Total control in tight spaces — Exclusive handle design offers full control in the upright position for maneuverability and visibility inside a trailer or between aisles
• Handle multiple pallet types — Movable load backrest with quick latch and pivot arms enables the walkie to handle multiple pallet types with a single fork configuration
• Maintain stability on challenging terrain — Navigate door jambs, rough parking lots, curbs and more while keeping loads secure with a 2-inch ratcheting and locking load retention strap

DESIGNED FOR THE TOUGHEST CONDITIONS
Tough applications come in all shapes and sizes. The MPB-VG has packages specifically designed to meet the unique challenges of a variety of applications.

• Standard construction — Designed to operate in +32° F to +120° F
• Cooler/freezer package — Designed for 0° F to +120° F, with red polyurethane groove or rubber drive tire recommended
• Sub-zero freezer package — Designed for -40° F to +120° F, with red polyurethane groove or rubber drive tire recommended
• Wash down package — Includes electric brake enclosure, lubrication (hydraulic freezer oil) and corrosion inhibitor on unpainted surfaces of drive wheel and drive unit
• Heavy corrosion wash down package — Includes galvanized frame and lift linkage, electric brake enclosure, lubrication (hydraulic freezer oil) and corrosion inhibitor on unpainted surfaces of drive wheel and drive unit

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.

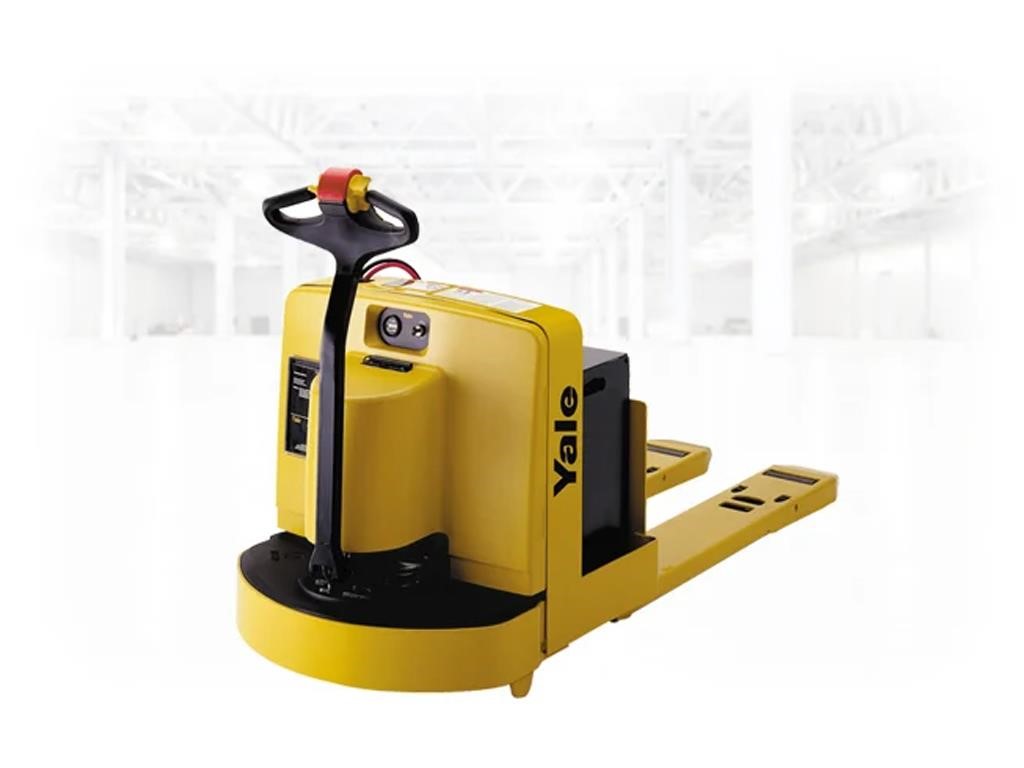

MPW080E — YALE MOTORIZED HAND TRUCK

DURABLE MOTORIZED HAND TRUCKS
The MPW series is among the most reliable trucks in the industry. Specifically designed with a tapered fork bottom-mounted control handle, the motorized hand truck series allows for industry leading pallet entry and exit that increases productivity. Four performance modes allow MPW series features innovative ergonomic technology like the bottom mounted handle, which optimizes the operating position and increases the walk-behind clearance.

FEATURES
• Superior maneuverability turns inside a trailer.
• Power and efficiency are keys to the outstanding performance of the motorized hand pallet truck.
• From the Separately Excited Motor (SEM) traction control technology, high performance hydraulic system and integral hoist control, the MPW series delivers state-of-the-art technology that adds up to reliable performance.
• Low profile – operator can see the fork tips for pallet entry.
• Top batteries swing out for fast fill or check.
• The Auto Deceleration System eliminates the need to manually apply a service brake for slow down.
• A simplified electrical system features a transistorized drive controller with integral hoist control that is easily programmed and features built-in diagnostics

Yale motorized hand trucks combine the latest in state-of-the-art technology and ergonomics making Yale the leader for walkie and/or rider applications.

CONTROLS
Travel direction and speed are selected by rotating the actuator in the desired direction of travel. The butterfly throttle control provides multiple grip positions minimizing operator fatigue. The stationary portion of the handle minimizes wrist movement and provides a solid grip while maneuvering the truck. This provides additional stability while driving the truck. The bottom-mounted tiller handle optimizes the operating position. Lift, Lower, and Horn pushbuttons are conveniently located on the handle. The Reversing Switch located on top of the handle simultaneously reverses truck direction and sounds the horn should it come in contact with the operator. The wrap around design provides protection through the full range of handle movement. This switch is reset when the direction control is returned to neutral or the handle is moved to the brake “on” position.

ELECTRICAL SYSTEM
The standard 24-volt MPW electrical system has been designed using SEM technology to enhance truck performance and reliability. The forward and reverse direction contactors are replaced by the traction motor controller. A main, or line contactor, is used to provide reverse polarity protection as well as power interrupt to the traction motor in the event of a controller fault. The controller utilizes regenerative braking which significantly reduces the current through the traction motor brushes during “plugging” therefore increasing brush life. SEM also provides improved speed and torque control throughout the range of operation therefore improving productivity.

MASTER DRIVE UNIT
The heart of the traction system is the master drive unit (MDU). A stationary traction motor eliminates the power cables from the traction motor to the traction controller from rotating or flexing. The MDU features an integrated pinion with a splined motor to MDU coupling. The support bearings and pinion are integral to the MDU eliminating the potential of damaging the gears when assembling the motor to the MDU. By integrating the pinion, the gear mesh can be better controlled resulting in a quieter MDU. The splined coupling allows for quick removal and installation of the traction motor.

LIFT LINKAGE SYSTEM
• Hydraulic Power Unit – A solid-state circuit is used to control the pump motor instead of traditional contactors, which extends the service life of the pump motor. A permanent magnet motor and pressure compensated pump are also utilized. This high efficiency system allows the pump and motor to operate at relatively low RPMs and results in low noise.
• Hoist motor – The hydraulic pump motor is controlled electronically. A lift interrupt is standard in order to limit the lift function in the event that the battery is depleted beyond 80%. A BDI/hour meter display is optional.
• Hydraulic reservoir – Provides a large volume of oil, reducing oil heating and allowing higher system efficiency. The reservoir is translucent with graduated fluid level marks for easy fluid level checks.
• Lift Linkage Pivots – All lift linkage pivots have bushings with provisions for lubrication. All lift linkage pins are turned, polished and ground cold rolled steel with electroless nickel plating. The electroless nickel plating provides corrosion protection.
• All lift linkage pins are retained by zinc plated spiral pins.
• Pull Rods – The pull rods are two piece construction: 1) welded 1” x 2” flat bar and adapter, and 2) replaceable threaded end. The pull rods are adjustable to compensate for bushing and load wheel wear.

BRAKE
Power is cut off and brake is applied when steering handle is fully raised or lowered. Handle returns to vertical when released. Regenerative braking is the primary method for the service brake. The traction motor will decelerate the truck when the throttle is returned to the neutral position. The parking brake is an electrically released, spring applied, electromagnetic brake. The brake is released by lowering the tiller handle to the operating position and selecting a direction with the direction/throttle control. The brake is applied when a traction control fault occurs.

FORKS
Totally fabricated 9″ wide forks are constructed of 1/4″ hot rolled steel and formed for strength. The fork nose bottom taper is designed specifically to enter non-chamfered bottom board and “throw away” pallets while maintaining the ability to enter a GMA pallet. The fork nose top profile is tapered to ease exiting the last pallet in a trailer where a grade change exists between the trailer and the dock leveler or dock plate. Pallet exit runners are welded to the underneath of each fork; and center roller on cast steel load wheel links assists exit. Easy pallet fork adjustment from top of fork by lock nut design operating on 7/8” pull rod.

FRAME
Heavy gauge plate and bar steel frame is electrically welded into unit structure for rigidity and strength. Battery compartment is an integral part of the fork frame. The front bumper is a full 3/8″ thick for toughness and 3 5/8″ off the floor to allow good ramp clearance.

WHEELS
• Load tires – The standard load wheel configuration is single load wheel with two roller bearings and a “knock-out” axle. The load wheel compound is 95 durometer polyurethane molded over a steel wheel and measures 3.25″ x 6.5″. Grease seal and string guard protection are standard.
• Drive tire – The drive tire is 10″ x 5″ x 6 1/2″ electric. Both rubber and 90 durometer polyurethane compounds are available. The drive wheel is secured to the drive axle with 5 bolts.

OPTIONS
Cold storage/freezer protection, various fork lengths load backrest, poly drive tire, operator convenience tray, multi-function display w/hour meter, discharge indicator and status code readout, battery rollers, stabilizing casters, various load wheel packages, and creep speed control.

ADDITIONAL FEATURES
• Lubrication – Fill and drain plugs are provided. All frame and drive unit mounting lubricating points are equipped with high pressure grease fittings. Standard is (red) SB 175 amp battery connector.
• Paint – Gold and black.

LIFT SPECIFICATIONS
6.0″ lift 6000 lb. capacity.

WEIGHT
MPW060-E – 1022 lb (464 kg)

POWER VOLTAGE
MPW060-E – 6000 lb. cap. – 24V STD.

TRAVEL SPEEDS
• 24 volts
• 6000 lb – Empty 3.6 mile/h (5.8 km/h); Loaded 2.8 mile/h (4.4 km/h)

LOAD WHEEL POSITIONING
The load wheels of standard trucks handling single pallets (A) will drop in the last opening of the pallet furthest from the operator when the pallet(s) length equals that of the forks. This opening must be at least nine inches in length and begin six inches from the end of the pallet. If the opening is less, the truck’s lift height must be reduced depending on the opening width or the wheels will push-off the bottom boards. Contact your Yale Industrial Truck Dealer for details.

Truck performance may be affected by the condition of the vehicle, how it is equipped, and the application. Consult your Yale Industrial Truck Dealer if any of the information shown is critical to your application. Specifications are subject to change without notice.

This truck meets all design specifications of ANSI B56.1 Safety Standard for Powered Industrial Trucks at the time of manufacture. Classified by Underwriters’ Laboratories, Inc. as to fire hazard only for Type E industrial trucks.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

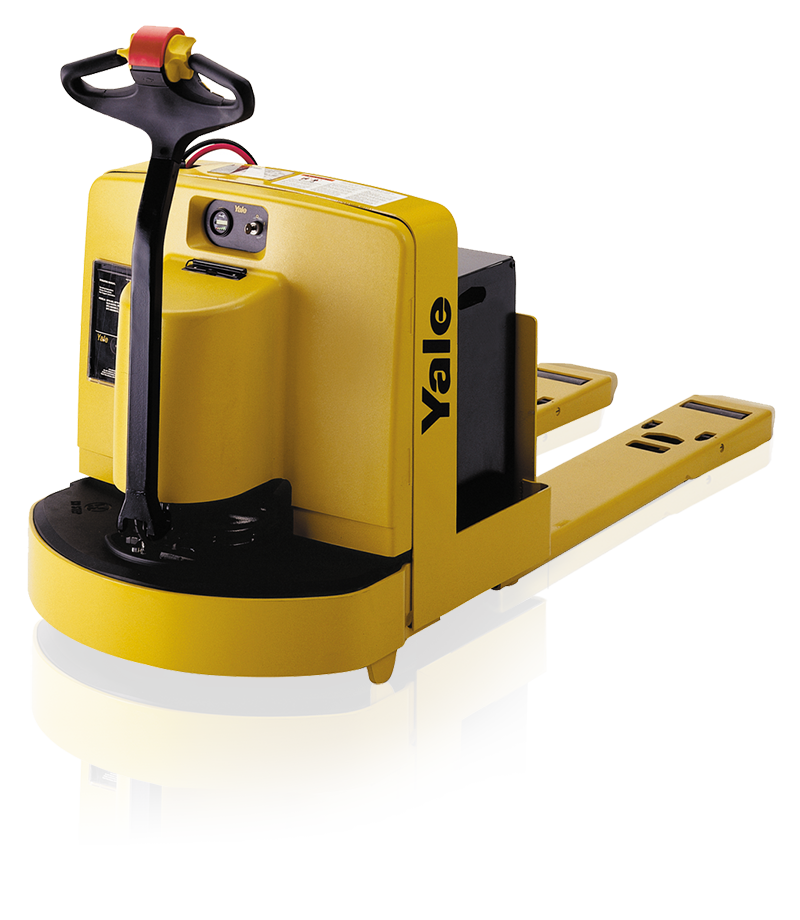

MPW065E — YALE MOTORIZED HAND TRUCK —

DURABLE MOTORIZED HAND TRUCKS
The MPW series is among the most reliable trucks in the industry. Specifically designed with a tapered fork bottom-mounted control handle, the motorized hand truck series allows for industry leading pallet entry and exit that increases productivity. Four performance modes allow MPW series features innovative ergonomic technology like the bottom mounted handle, which optimizes the operating position and increases the walk-behind clearance.

FEATURES
• Superior maneuverability turns inside a trailer.
• Power and efficiency are keys to the outstanding performance of the motorized hand pallet truck.
• From the Separately Excited Motor (SEM) traction control technology, high performance hydraulic system and integral hoist control, the MPW series delivers state-of-the-art technology that adds up to reliable performance.
• Low profile – operator can see the fork tips for pallet entry.
• Top batteries swing out for fast fill or check.
• The Auto Deceleration System eliminates the need to manually apply a service brake for slow down.
• A simplified electrical system features a transistorized drive controller with integral hoist control that is easily programmed and features built-in diagnostics

Yale motorized hand trucks combine the latest in state-of-the-art technology and ergonomics making Yale the leader for walkie and/or rider applications.

CONTROLS
Travel direction and speed are selected by rotating the actuator in the desired direction of travel. The butterfly throttle control provides multiple grip positions minimizing operator fatigue. The stationary portion of the handle minimizes wrist movement and provides a solid grip while maneuvering the truck. This provides additional stability while driving the truck. The bottom-mounted tiller handle optimizes the operating position. Lift, Lower, and Horn pushbuttons are conveniently located on the handle. The Reversing Switch located on top of the handle simultaneously reverses truck direction and sounds the horn should it come in contact with the operator. The wrap around design provides protection through the full range of handle movement. This switch is reset when the direction control is returned to neutral or the handle is moved to the brake “on” position.

ELECTRICAL SYSTEM
The standard 24-volt MPW electrical system has been designed using SEM technology to enhance truck performance and reliability. The forward and reverse direction contactors are replaced by the traction motor controller. A main, or line contactor, is used to provide reverse polarity protection as well as power interrupt to the traction motor in the event of a controller fault. The controller utilizes regenerative braking which significantly reduces the current through the traction motor brushes during “plugging” therefore increasing brush life. SEM also provides improved speed and torque control throughout the range of operation therefore improving productivity.

MASTER DRIVE UNIT
The heart of the traction system is the master drive unit (MDU). A stationary traction motor eliminates the power cables from the traction motor to the traction controller from rotating or flexing. The MDU features an integrated pinion with a splined motor to MDU coupling. The support bearings and pinion are integral to the MDU eliminating the potential of damaging the gears when assembling the motor to the MDU. By integrating the pinion, the gear mesh can be better controlled resulting in a quieter MDU. The splined coupling allows for quick removal and installation of the traction motor.

LIFT LINKAGE SYSTEM
• Hydraulic Power Unit – A solid-state circuit is used to control the pump motor instead of traditional contactors, which extends the service life of the pump motor. A permanent magnet motor and pressure compensated pump are also utilized. This high efficiency system allows the pump and motor to operate at relatively low RPMs and results in low noise.
• Hoist motor – The hydraulic pump motor is controlled electronically. A lift interrupt is standard in order to limit the lift function in the event that the battery is depleted beyond 80%. A BDI/hour meter display is optional.
• Hydraulic reservoir – Provides a large volume of oil, reducing oil heating and allowing higher system efficiency. The reservoir is translucent with graduated fluid level marks for easy fluid level checks.
• Lift Linkage Pivots – All lift linkage pivots have bushings with provisions for lubrication. All lift linkage pins are turned, polished and ground cold rolled steel with electroless nickel plating. The electroless nickel plating provides corrosion protection.
• All lift linkage pins are retained by zinc plated spiral pins.
• Pull Rods – The pull rods are two piece construction: 1) welded 1” x 2” flat bar and adapter, and 2) replaceable threaded end. The pull rods are adjustable to compensate for bushing and load wheel wear.

BRAKE
Power is cut off and brake is applied when steering handle is fully raised or lowered. Handle returns to vertical when released. Regenerative braking is the primary method for the service brake. The traction motor will decelerate the truck when the throttle is returned to the neutral position. The parking brake is an electrically released, spring applied, electromagnetic brake. The brake is released by lowering the tiller handle to the operating position and selecting a direction with the direction/throttle control. The brake is applied when a traction control fault occurs.

FORKS
Totally fabricated 9″ wide forks are constructed of 1/4″ hot rolled steel and formed for strength. The fork nose bottom taper is designed specifically to enter non-chamfered bottom board and “throw away” pallets while maintaining the ability to enter a GMA pallet. The fork nose top profile is tapered to ease exiting the last pallet in a trailer where a grade change exists between the trailer and the dock leveler or dock plate. Pallet exit runners are welded to the underneath of each fork; and center roller on cast steel load wheel links assists exit. Easy pallet fork adjustment from top of fork by lock nut design operating on 7/8” pull rod.

FRAME
Heavy gauge plate and bar steel frame is electrically welded into unit structure for rigidity and strength. Battery compartment is an integral part of the fork frame. The front bumper is a full 3/8″ thick for toughness and 3 5/8″ off the floor to allow good ramp clearance.

WHEELS
• Load tires – The standard load wheel configuration is single load wheel with two roller bearings and a “knock-out” axle. The load wheel compound is 95 durometer polyurethane molded over a steel wheel and measures 3.25″ x 6.5″. Grease seal and string guard protection are standard.
• Drive tire – The drive tire is 10″ x 5″ x 6 1/2″ electric. Both rubber and 90 durometer polyurethane compounds are available. The drive wheel is secured to the drive axle with 5 bolts.

OPTIONS
Cold storage/freezer protection, various fork lengths load backrest, poly drive tire, operator convenience tray, multi-function display w/hour meter, discharge indicator and status code readout, battery rollers, stabilizing casters, various load wheel packages, and creep speed control.

ADDITIONAL FEATURES
• Lubrication – Fill and drain plugs are provided. All frame and drive unit mounting lubricating points are equipped with high pressure grease fittings. Standard is (red) SB 175 amp battery connector.
• Paint – Gold and black.

LIFT SPECIFICATIONS
6.0″ lift 6000 lb. capacity.

WEIGHT
MPW060-E – 1022 lb (464 kg)

POWER VOLTAGE
MPW060-E – 6000 lb. cap. – 24V STD.

TRAVEL SPEEDS
• 24 volts
• 6000 lb – Empty 3.6 mile/h (5.8 km/h); Loaded 2.8 mile/h (4.4 km/h)

LOAD WHEEL POSITIONING
The load wheels of standard trucks handling single pallets (A) will drop in the last opening of the pallet furthest from the operator when the pallet(s) length equals that of the forks. This opening must be at least nine inches in length and begin six inches from the end of the pallet. If the opening is less, the truck’s lift height must be reduced depending on the opening width or the wheels will push-off the bottom boards. Contact your Yale Industrial Truck Dealer for details.

Truck performance may be affected by the condition of the vehicle, how it is equipped, and the application. Consult your Yale Industrial Truck Dealer if any of the information shown is critical to your application. Specifications are subject to change without notice.

This truck meets all design specifications of ANSI B56.1 Safety Standard for Powered Industrial Trucks at the time of manufacture. Classified by Underwriters’ Laboratories, Inc. as to fire hazard only for Type E industrial trucks.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

MPW060E — YALE MOTORIZED HAND TRUCK

DURABLE MOTORIZED HAND TRUCKS
The MPW series is among the most reliable trucks in the industry. Specifically designed with a tapered fork bottom-mounted control handle, the motorized hand truck series allows for industry leading pallet entry and exit that increases productivity. Four performance modes allow MPW series features innovative ergonomic technology like the bottom mounted handle, which optimizes the operating position and increases the walk-behind clearance.

FEATURES
• Superior maneuverability turns inside a trailer.
• Power and efficiency are keys to the outstanding performance of the motorized hand pallet truck.
• From the Separately Excited Motor (SEM) traction control technology, high performance hydraulic system and integral hoist control, the MPW series delivers state-of-the-art technology that adds up to reliable performance.
• Low profile – operator can see the fork tips for pallet entry.
• Top batteries swing out for fast fill or check.
• The Auto Deceleration System eliminates the need to manually apply a service brake for slow down.
• A simplified electrical system features a transistorized drive controller with integral hoist control that is easily programmed and features built-in diagnostics

Yale motorized hand trucks combine the latest in state-of-the-art technology and ergonomics making Yale the leader for walkie and/or rider applications.

CONTROLS
Travel direction and speed are selected by rotating the actuator in the desired direction of travel. The butterfly throttle control provides multiple grip positions minimizing operator fatigue. The stationary portion of the handle minimizes wrist movement and provides a solid grip while maneuvering the truck. This provides additional stability while driving the truck. The bottom-mounted tiller handle optimizes the operating position. Lift, Lower, and Horn pushbuttons are conveniently located on the handle. The Reversing Switch located on top of the handle simultaneously reverses truck direction and sounds the horn should it come in contact with the operator. The wrap around design provides protection through the full range of handle movement. This switch is reset when the direction control is returned to neutral or the handle is moved to the brake “on” position.

ELECTRICAL SYSTEM
The standard 24-volt MPW electrical system has been designed using SEM technology to enhance truck performance and reliability. The forward and reverse direction contactors are replaced by the traction motor controller. A main, or line contactor, is used to provide reverse polarity protection as well as power interrupt to the traction motor in the event of a controller fault. The controller utilizes regenerative braking which significantly reduces the current through the traction motor brushes during “plugging” therefore increasing brush life. SEM also provides improved speed and torque control throughout the range of operation therefore improving productivity.

MASTER DRIVE UNIT
The heart of the traction system is the master drive unit (MDU). A stationary traction motor eliminates the power cables from the traction motor to the traction controller from rotating or flexing. The MDU features an integrated pinion with a splined motor to MDU coupling. The support bearings and pinion are integral to the MDU eliminating the potential of damaging the gears when assembling the motor to the MDU. By integrating the pinion, the gear mesh can be better controlled resulting in a quieter MDU. The splined coupling allows for quick removal and installation of the traction motor.

LIFT LINKAGE SYSTEM
• Hydraulic Power Unit – A solid-state circuit is used to control the pump motor instead of traditional contactors, which extends the service life of the pump motor. A permanent magnet motor and pressure compensated pump are also utilized. This high efficiency system allows the pump and motor to operate at relatively low RPMs and results in low noise.
• Hoist motor – The hydraulic pump motor is controlled electronically. A lift interrupt is standard in order to limit the lift function in the event that the battery is depleted beyond 80%. A BDI/hour meter display is optional.
• Hydraulic reservoir – Provides a large volume of oil, reducing oil heating and allowing higher system efficiency. The reservoir is translucent with graduated fluid level marks for easy fluid level checks.
• Lift Linkage Pivots – All lift linkage pivots have bushings with provisions for lubrication. All lift linkage pins are turned, polished and ground cold rolled steel with electroless nickel plating. The electroless nickel plating provides corrosion protection.
• All lift linkage pins are retained by zinc plated spiral pins.
• Pull Rods – The pull rods are two piece construction: 1) welded 1” x 2” flat bar and adapter, and 2) replaceable threaded end. The pull rods are adjustable to compensate for bushing and load wheel wear.

BRAKE
Power is cut off and brake is applied when steering handle is fully raised or lowered. Handle returns to vertical when released. Regenerative braking is the primary method for the service brake. The traction motor will decelerate the truck when the throttle is returned to the neutral position. The parking brake is an electrically released, spring applied, electromagnetic brake. The brake is released by lowering the tiller handle to the operating position and selecting a direction with the direction/throttle control. The brake is applied when a traction control fault occurs.

FORKS
Totally fabricated 9″ wide forks are constructed of 1/4″ hot rolled steel and formed for strength. The fork nose bottom taper is designed specifically to enter non-chamfered bottom board and “throw away” pallets while maintaining the ability to enter a GMA pallet. The fork nose top profile is tapered to ease exiting the last pallet in a trailer where a grade change exists between the trailer and the dock leveler or dock plate. Pallet exit runners are welded to the underneath of each fork; and center roller on cast steel load wheel links assists exit. Easy pallet fork adjustment from top of fork by lock nut design operating on 7/8” pull rod.

FRAME
Heavy gauge plate and bar steel frame is electrically welded into unit structure for rigidity and strength. Battery compartment is an integral part of the fork frame. The front bumper is a full 3/8″ thick for toughness and 3 5/8″ off the floor to allow good ramp clearance.

WHEELS
• Load tires – The standard load wheel configuration is single load wheel with two roller bearings and a “knock-out” axle. The load wheel compound is 95 durometer polyurethane molded over a steel wheel and measures 3.25″ x 6.5″. Grease seal and string guard protection are standard.
• Drive tire – The drive tire is 10″ x 5″ x 6 1/2″ electric. Both rubber and 90 durometer polyurethane compounds are available. The drive wheel is secured to the drive axle with 5 bolts.

OPTIONS
Cold storage/freezer protection, various fork lengths load backrest, poly drive tire, operator convenience tray, multi-function display w/hour meter, discharge indicator and status code readout, battery rollers, stabilizing casters, various load wheel packages, and creep speed control.

ADDITIONAL FEATURES
• Lubrication – Fill and drain plugs are provided. All frame and drive unit mounting lubricating points are equipped with high pressure grease fittings. Standard is (red) SB 175 amp battery connector.
• Paint – Gold and black.

LIFT SPECIFICATIONS
6.0″ lift 6000 lb. capacity.

WEIGHT
MPW060-E – 1022 lb (464 kg)

POWER VOLTAGE
MPW060-E – 6000 lb. cap. – 24V STD.

TRAVEL SPEEDS
• 24 volts
• 6000 lb – Empty 3.6 mile/h (5.8 km/h); Loaded 2.8 mile/h (4.4 km/h)

LOAD WHEEL POSITIONING
The load wheels of standard trucks handling single pallets (A) will drop in the last opening of the pallet furthest from the operator when the pallet(s) length equals that of the forks. This opening must be at least nine inches in length and begin six inches from the end of the pallet. If the opening is less, the truck’s lift height must be reduced depending on the opening width or the wheels will push-off the bottom boards. Contact your Yale Industrial Truck Dealer for details.

Truck performance may be affected by the condition of the vehicle, how it is equipped, and the application. Consult your Yale Industrial Truck Dealer if any of the information shown is critical to your application. Specifications are subject to change without notice.

This truck meets all design specifications of ANSI B56.1 Safety Standard for Powered Industrial Trucks at the time of manufacture. Classified by Underwriters’ Laboratories, Inc. as to fire hazard only for Type E industrial trucks.

Similar models may be shown in addition to the featured model. Equipment may be shown with options.

Specifications are subject to change without prior notice.

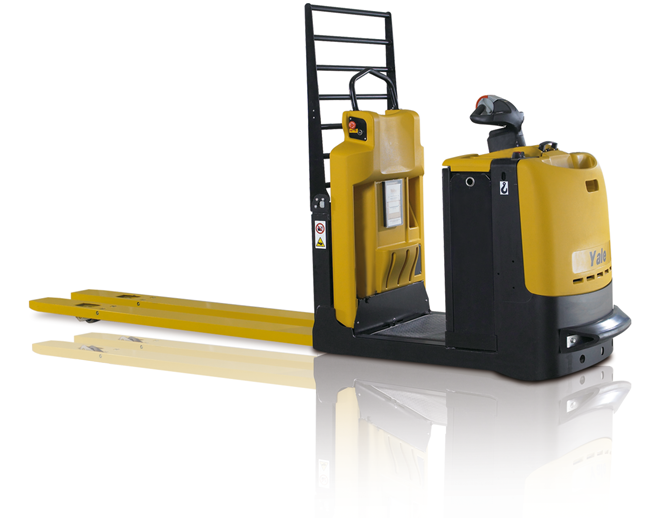

The Yale solution to comfortable and efficient first and second level order pickingThe Yale MO series of multi-level order selectors is one of the most efficient and cost effective solutions for the fast efficient picking of customer orders.
The unit is available with a fixed or lifting platform for first and second level picking. This series of order selectors is ideal for cross docking and load shuttling as well as order picking in intensive and high throughput warehouse operations.

Durable Motorized Hand TrucksThe MPW series is among the most reliable trucks in the industry. Specifically designed with a tapered fork bottom-mounted control handle, the motorized hand truck series allows for industry leading pallet entry and exit that increases productivity.

Four performance modes allow MPW series features innovative ergonomic technology like the bottom mounted handle, which optimizes the operating position and increases the walk-behind clearance.

Designed with a variety of industry-exclusive ergonomic enhancements and smart features, the walkie rider boosts labor efficiency and throughput in several workflows, including dock loading/unloading, horizontal transport and low-level order picking.

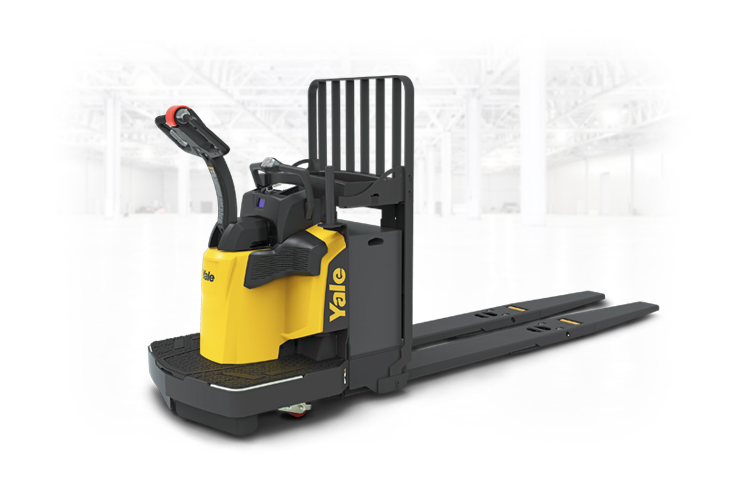

The enclosed end rider is engineered from the ground up based on feedback from customers, offering the comfort, productivity and dependability to get even the most demanding cross-docking and transportation jobs done.
