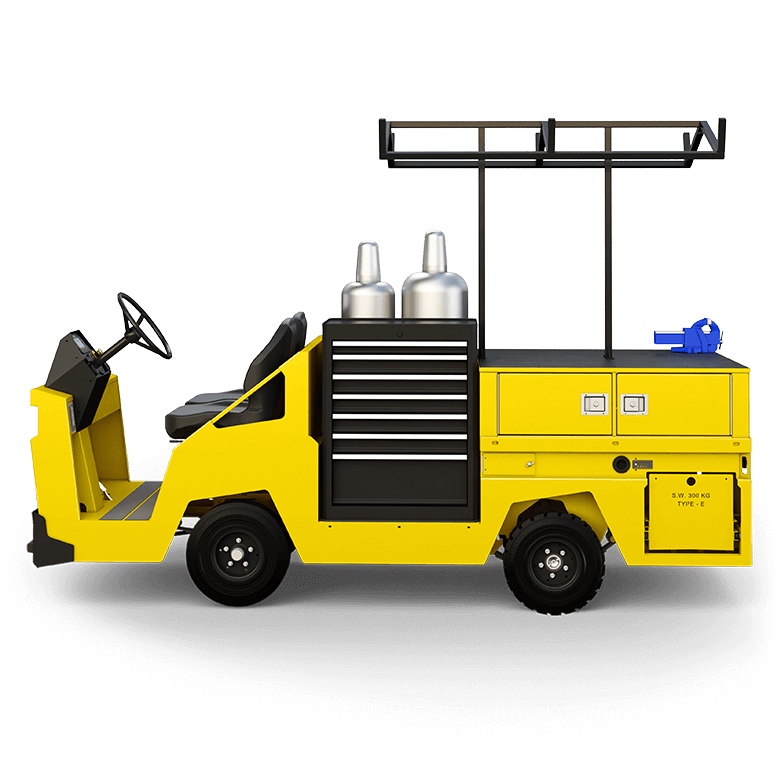

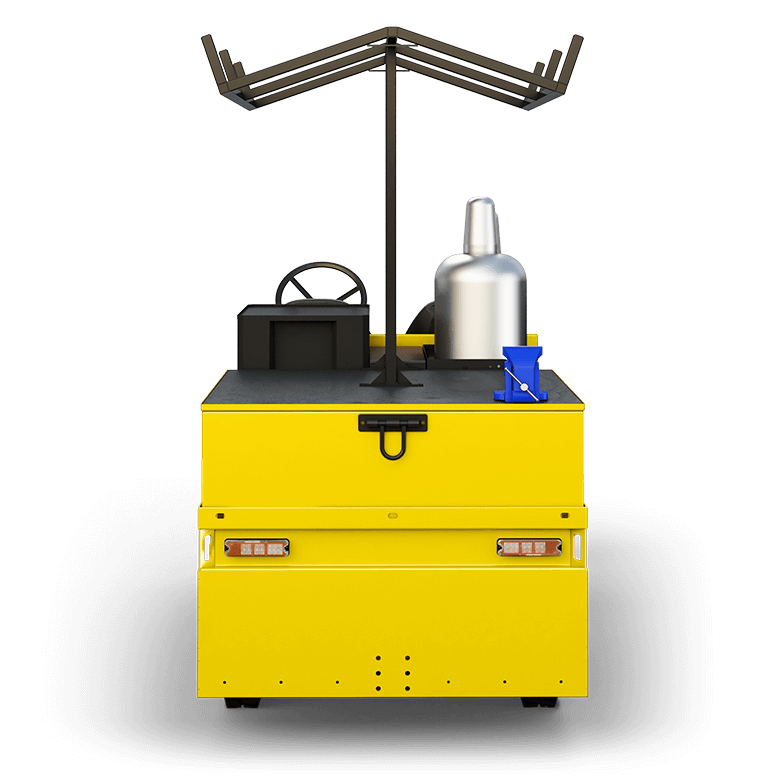

This dependable work truck adapts to a wide variety of jobs. Use it to access restricted spaces, or to quickly cover long distances much faster than on foot. The full-sized 7-drawer tool chest and large lockable compartments will hold all the parts and tools you need—and keep them safely where they belong. Standard features also include a bolt-on front bumper, ladder rack, tank rack, extinguisher & vice. Several option packages available. Unlimited configurations.
Alta Financial Services
Get in touch with our Financial Services department today.
View Financing Options- AC controller with sealed connectors paired with multifunction display: Allows for precise speed control for greater safety and vehicle performance. Includes indicators for speed, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability.
- Reinforced bolt-on front bumper: Protects vehicle components from damage and keeps maintenance costs low. Equipped with anchors for easier towing. Bumpers are easy to replace when needed. An easy, low-cost way to protect your investment.
- Safe and comfortable all-steel cabs: Protects operators and everyone around them. Our customizable cabs come with a long list of standard and optional features: lockable/Mika/removable doors, canopy top, ladder/pipe rack, wipers, rear-view mirror, sliding windows with safety glass, heater, air conditioning, cab-mounted strobe light, cab sound proofing, rust proofing… the list goes on and on.
- Console on steering column: Complete console on steering column to put all controls and displays conveniently right where your fingers and eyes are. Now with a tilted steering column for a more ergonomic and natural driving posture to reduce operator fatigue and strain.
- High-efficiency asynchronous AC / Direct Drive motor: Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
Specifications Table
|
Maintenance Truck |
|
|---|---|
|
Passengers |
2 |
|
Load Capacity |
2,750 lbs. |
|
Towing Capacity |
6,000 lbs. |
|
Speed |
10 mph |
|
Turning Radius |
133″ |
|
Motor |
Brushless AC motor, HP (9 HP continuous) |
|
Drive Axle |
Helical gear differential |
|
Transmission |
Direct drive |
|
Controller |
AC Electronic speed controller |
|
ENERGY |
|
|
Voltage |
48V |
|
Battery |
Eight 6V-225AH batteries |
|
Charger |
High-frequency (85-265VAC / 45-65Hz, 1kw), built-in automatic. |
|
CHASSIS |
|
|
Body |
All-steel unibody construction. Powder coating |
|
Suspension |
Dual leaf springs on front and rear |
|
Brakes |
Rear hydraulic drum brake, electromagnetic parking brake with manual hand release, regenerative braking |
|
Wheels |
5.7×8 LRD pneumatic tires |
|
Steering |
Automotive steering wheel, tilted steering column |
|
Seats |
Two premium seats on slide adjusters |
|
EQUIPMENT |
|
|
Lights |
LED dual headlights & tail/brake lights, dual back-up lights |
|
Indicators |
Multifunction display including speedometer, battery state of charge, hour meter, odometer and fault warnings. Password-protected parameters and monitoring capability. |
|
Accessories |
Console on steering column, bolt-on front bumper, DC/DC converter to equalize battery cells, LED charge indicator, full-sized 7-drawer tool chest, 3 lockable compartments, ladder/pipe racks, extinguisher, vice |
|
Safety |
Deadman seat switch, reverse alarm, horn, automatic parking brake |
|
VEHICLE |
|
|
Weight |
|
|
Height |
86,5″ |
|
Length |
126,5″ |
|
Width |
45,5″58″ |
|
Wheel Base |
|
|
DECK |
|
|
Deck Height |
42,5″ |
|
Deck Length |
79″ |
|
Deck Width |
45,5″ |
|
BATTERY |
|
|
Battery Weight |
|
|
Battery Height |
|
|
Battery Length |
|
|
Battery Width |
|
