C4000ST | Alta Material Handling

COMBILIFT MULTI-DIRECTIONAL STAND-ON FORKLIFT, COMBI-ST SERIES — C4000 ST

The multi-directional, stand-on forklift designed for the safe, space saving and productive handling of long and bulky loads. Suitable for handling guided aisles, long loads, narrow aisles, and palletised goods.

PERFECT FOR THE FOLLOWING INDUSTRIES

• Aluminum

• Logistics

• Metals

• Plastics

• Steel

• Timber

• Warehousing

FEATURES

• Rubber Mounted Cabin

• Multi-directional Operation

• Load Sensing Steering

• 2 wheel Hydrostatic Drive

• 4-way Lever Positioning of Wheels

• Stand-up Operator

THE OBVIOUS CHOICE OF FORKLIFT WHEN SPACE IS AT AN ABSOLUTE PREMIUM

For operators working in confined spaces, excellent visibility and speedy picking is essential. Guided aisle operation and a cab designed for efficiency make the Combi-ST and Combi-GT stand-on ranges the obvious choices when space is at an absolute premium, such as in stockholding facilities for steel, metal, tubes, uPVC extrusions.

FORKLIFTS FOR EXTREMELY NARROW AISLES

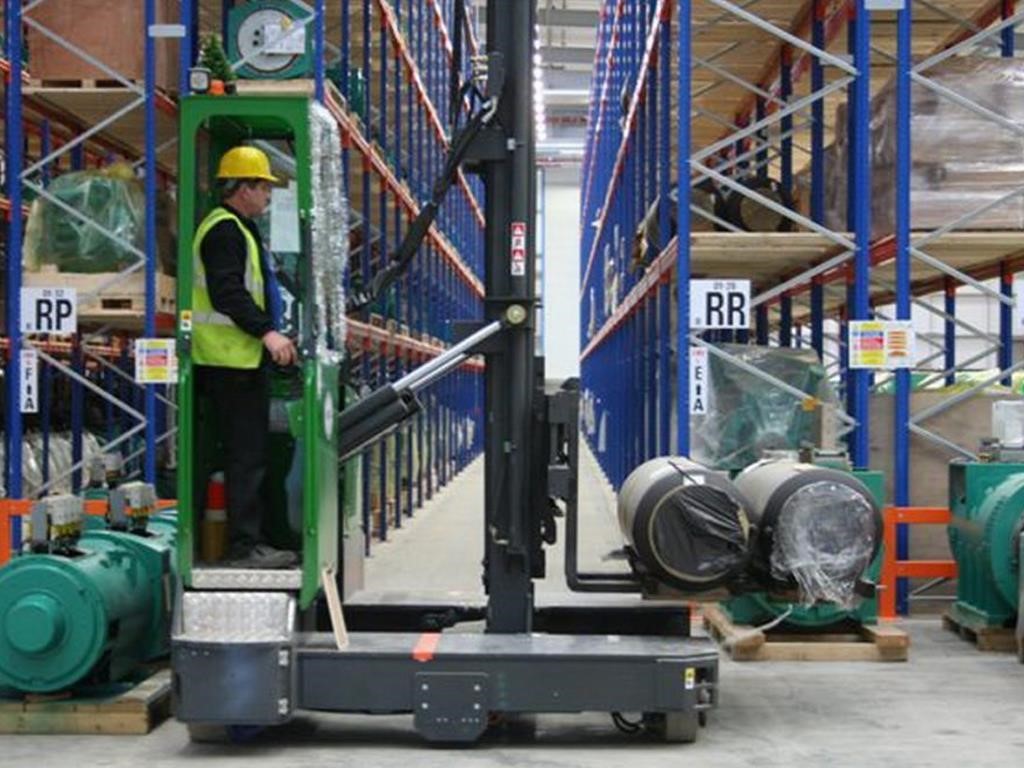

The narrow cab design enables operation in extremely narrow aisles. And what’s more, platform lengths can be customised to fit existing narrow aisle facilities. Reduced on-site storage costs coupled with the ability to adapt stock density to growing demand are just some of the advantages of the Combi-ST/GT models. Robust and reliable, Combilift stand-on sideloaders can manoeuvre long loads indoors and out. The Combi-GT two-way sideloader can work in aisle-widths of just 1.27m

GUIDED AISLE OPERATION

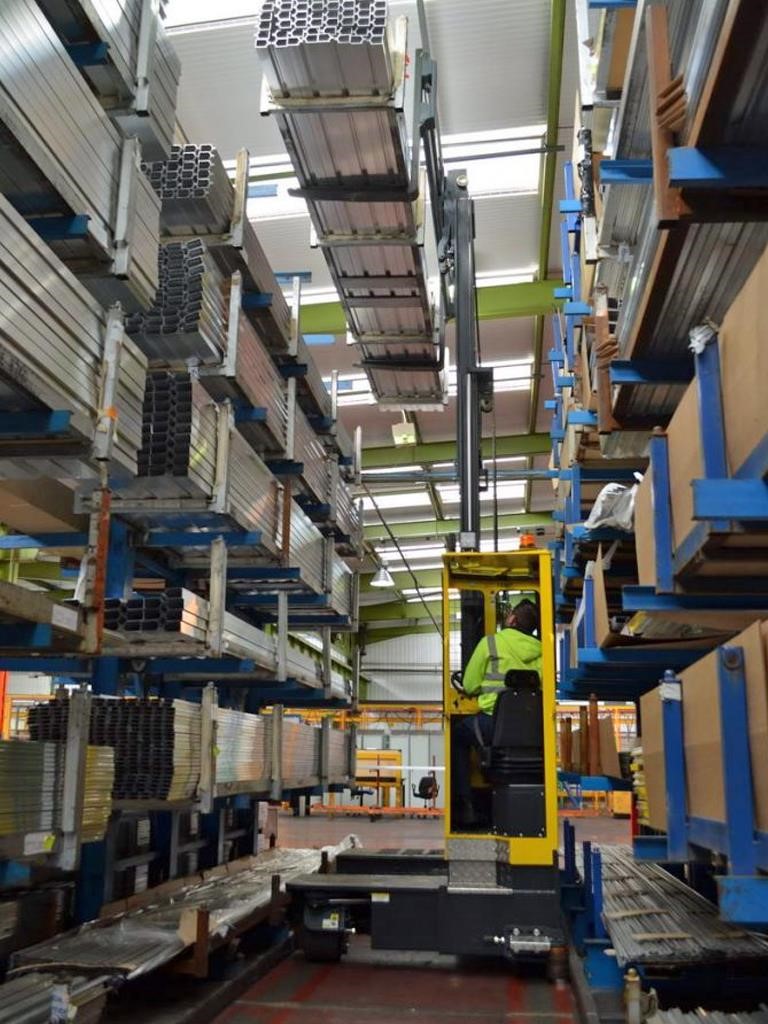

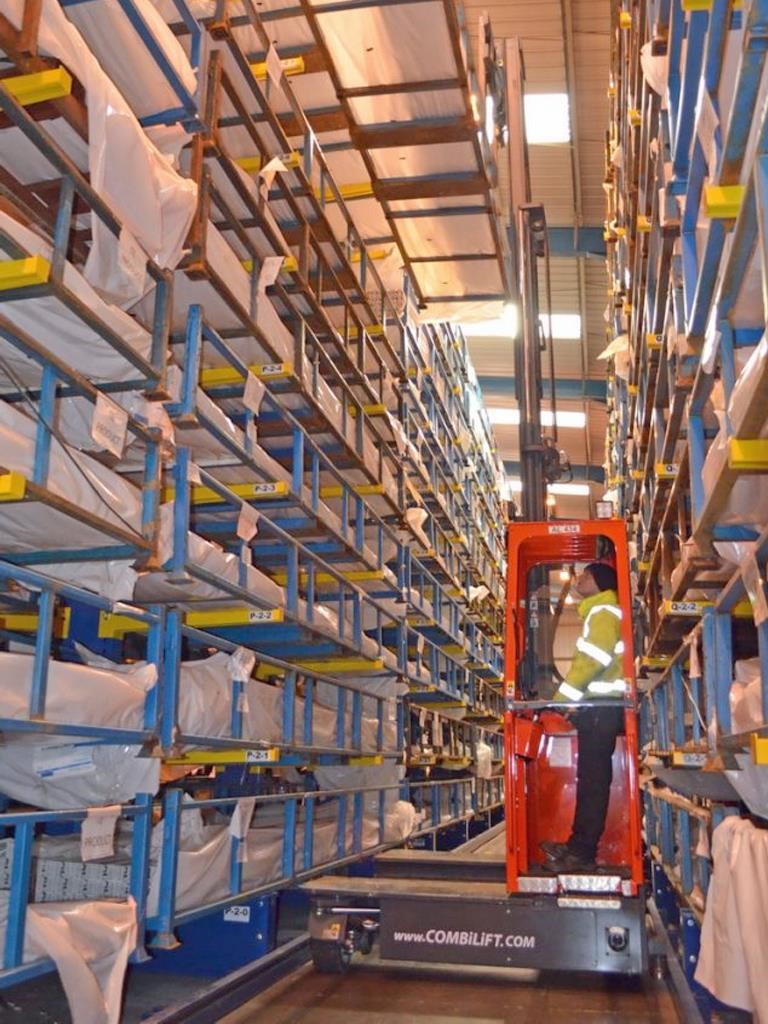

Guided aisle operation is taken up by many customers, making it very quick to enter and steer down aisles whilst greatly reducing the risk of damage to both product and racking. When operators are required to do a lot of picking, the cab’s design makes it quick and easy to enter and exit on a regular basis compared with ride-on forklifts, and the option of a folding seat offers further levels of comfort. A popular option with the Combi-ST is the sit-down cabin with diagonal seat, which offers superb operator comfort without compromising on aisle widths.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Combilift has a policy of continuous product development and reserves the right to alter specifications without prior notice. Specifications and/or dimensions may vary from those illustrated in some countries.

C4000ST

Specifications

  • Specifications - Maximum Ground Speed: 10 km/h
  • Specifications - Free Lift Height: 0mm
  • Specifications - Gradeability: 10%
  • Specifications - Unladen Weight: 6550 kg
  • Specifications - Platform Length: 1200mm
  • Specifications - Departure Angle: 45°
  • Specifications - Platform Width: 3050mm
  • Specifications - Ground Clearance Under Mast: 230mm
  • Specifications - Forward Tilt:
  • Specifications - Load Centre Distance: 600mm
  • Specifications - Capacity: 4000 kg
  • Specifications - Outside Spread of Fork Arms: 1350mm
  • Specifications - Height Over Cab (without work lights): 2660mm
  • Specifications - 16 x 7 – 10.5 Front Tyre (Solid Rubber): OD 406mm | Width 178mm
  • Specifications - Fork Section: 150mm x 50mm x 1200mm
  • Specifications - Frame Opening: 1500mm
  • Specifications - Overhang Front: 205mm
  • Specifications - 3 ltr GM LPG: 48 kW
  • Specifications - Overhang Back: 135mm
  • Specifications - Ramp Angle: 17°
  • Specifications - Backward Tilt:
  • Specifications - Max. Lift Height: 4040mm
  • Specifications - Approach Angle: 45°
  • Specifications - Overall Length: 2100mm
  • Specifications - Kubota V1505- T Diesel: 32 kW
  • Specifications - Wheelbase: 1760mm
  • Specifications - Platform Height: 495mm
  • Specifications - Overall Width: 3200mm
  • Specifications - Track Front: 2470mm
  • Specifications - Length From Face of Fork: 900mm
  • Specifications - Max. (Mast raised): 5185mm
  • Specifications - Minimum Outside Radius: 2420mm
  • Specifications - Ground Clearance to Centre of Wheelbase: 130mm
  • Specifications - Mast Travel: 1300mm
  • Specifications - 23 x 10 – 12 Rear Tyre (Super Elastic): OD 580mm | Width 240mm
  • Specifications - Standard Colour: Green & Grey
  • Specifications - Height Mast Closed: 3350mm
