Hyster H190-400XD Series

Smaller footprint, greater capacity.

Ideal for compact operating conditions, Hyster® offers 5 short wheelbase models with all of the features of the standard wheelbase models including masts, carriages and fork options.

• 114″ and 138” short wheelbase models offer compact size with excellent maneuverability.
• Shorter wheel base design does not compromise fuel tank capacity, hydraulic tank capacity, travel speeds or key performance characteristics.

Low maintenance. High performance.

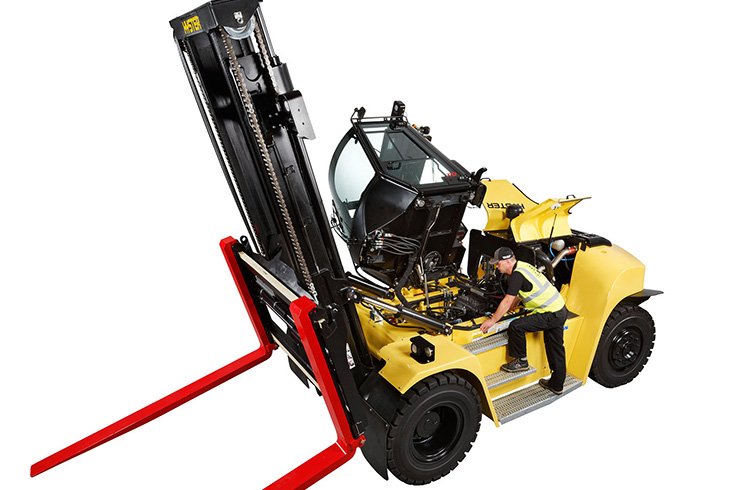

The Hyster® H190-400XD series trucks are designed with the service technician in mind. Gull-wing hoods provide quick access to key components, and daily checks don’t require tilting the cab. A tilting cab provides easy access to hydraulic components in seconds. Galvanized, broad, slip-resistant running boards and placement of after treatment on the
outside of the truck foster quick daily checks, while a large access bay enables easy radiator cleaning.

Hyster makes operator comfort a priority.

With the largest cabin entry area in the industry, the operator cabin on the Hyster H190-400XD series provides ample space for operators of any size to easily and more comfortably enter and exit the cabin. Once inside, operators enjoy the comfort of a spacious cockpit style cabin that keeps all truck information and controls within reach.

The ergonomically designed, seat-mounted control arm is fully adjustable and includes a wrist cushion and TouchPoint™ mini-levers to help reduce fatigue when operating the hydraulics. The reliable CANBUS controls for all main components and modular design of the control arm makes it possible to cover almost any possible truck configuration while being easily serviceable.

The 7” full color, touchscreen Integrated Performance Display tracks all truck activity, allows for easy access to change or calibrate truck settings and is integrated with Hyster Tracker™ telemetry system. The display also offers high-level onboard diagnostics allowing for advanced and quick troubleshooting.

A variety of seat configurations are offered to suit operator preference including mechanical or air suspension, cloth or vinyl cover, lumbar support and ventilated or heated seats. The air conditioning system can be pre-set for automatic climate control and the unique high and rear louvers provide direct air flow toward the operator.

Forward and rearward visibility

Open carriage design, mast chains mounted on the outside of the mast low cowl and increased space between mast channels and valve block location enable enhanced forward view of fork tips at travel and load height. Curved, scratch resistant, tempered glass front and rear windshields, armored glass top window and one piece steel-framed glass doors provide operators with excellent all-around visibility. On the exterior, sloping counterweights enhance visibility of steer tires for improved maneuverability and reduced tire gouging.

Auto-shifting transmission with true inching

These trucks are equipped with proven and reliable ZF 3-speed auto-shift transmissions paired with Cummins engines to provide true inching capability and not declutch like some of the competitors’ trucks. Equipped with an inching brake pedal that when depressed part way permits the truck to move forward and back in a slow controlled manner and allows high-speed hoist at low ground speed. The auto-shift transmissions enable smooth shifts that enhance the longevity of the drivetrain and operator comfort by reducing jolt, translating into better controllability and less operator fatigue.
