HYSTER PCS30UT — LITHIUM-ION POWERED PALLET TRUCK
The Hyster® lithium-ion powered pallet truck PCS30UT offers helps to improve efficiency by reducing operator effort and assists in lowering the total cost of ownership through lower maintenance requirements. Similar to a hand pallet truck, it is compact and lightweight with minimal maintenance requirements. The PCS30UT can be operated with very little downtime, due to a 6-second battery exchange time.
OPERATOR FRIENDLY
• Compact, lightweight design is easy to maneuver
• Powered travelling, lifting and lowering reduces strain on operators
• Intelligent remote control key option

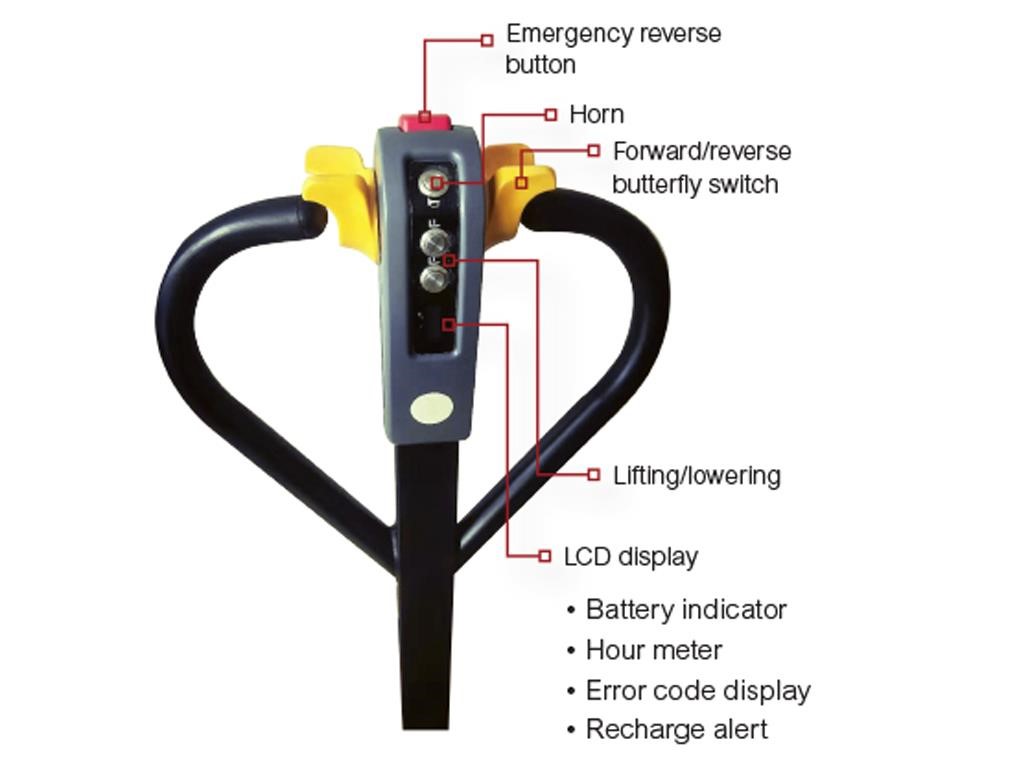

• Ergonomic, multi-function handle with LCD display
• Speed setting: convenient fast/slow preset speeds
• Upright drive: Maximize efficiency in tight spaces
• Service mode: Utilize brake release in case of emergency
MINIMAL MAINTENANCE
• 6-second battery exchange time
• Maintenance-free components, including brushless drive motor and lithium-ion battery
• 60-second drive wheel replacement
• Durable steel frame and protective cover
IMPROVED EFFICIENCY
• Powered travelling, lifting and lowering makes this model up to 3 times more efficient than a hand pallet truck
• Can be operated with very little downtime, due to a 6-second battery exchange time (optional large battery is available with 3-hour fast charger)
• Performs well on gradients
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Technical Data - Load center in (mm): 23.6 (600)
- Technical Data - Overall length in (mm): 61.10 (1552) / (63.86) 1622
- Technical Data - Load wheel (single x2 / dual x4 ) in (mm): Ø3.15 (80) x 3.66 (93) Poly / Ø3.14 (80) x 2.75 (70) poly
- Technical Data - Travel brake type: Regenerative
- Technical Data - Battery type: Lithium
- Technical Data - Service weight (includes battery) lb (kg): 264.55 (120) / 275.58 (125)
- Technical Data - Lift speed - loaded / unloaded (lowering speed - loaded / unloaded) ft / min: 3.54 / 4.53 (11 / 9)
- Technical Data - Axle loading-laden front / rear / unladen front / rear lb (kg): 2,500 (1134) / 1,071.4 (486) / 194 (88) / 70.5 (32)
- Technical Data - Turning radius (raised) in (mm): 53.26 (1353) / 56.14 (1426)
- Technical Data - Right angle stack (39.37 x 47.24 crossway / 31.50 x 47.24 lengthways) in (mm): α 67.64 (1718) / β 66.41 (1687)
- Technical Data - Control type: DC
- Technical Data - Maximum gradeability (loaded / unloaded) %: 6 / 20
- Technical Data - Power consumption in accordance with VDI cycle kWh / h: 0.42
- Technical Data - Drive wheel x(1) in (mm): Ø5.51 (140) x 2.16 (55) Poly (1)
- Technical Data - Sound level at driver’s ear EN12053 dB (A): 69
- Technical Data - Operator type: Pedestrian
- Technical Data - Service brake type: Electromagnetic
- Technical Data - Battery capacity Ah: 10 / 15
- Technical Data - Fork dimensions in (mm): 2.28 (58) x 6.30 (160) x 45.28 (1150) / 2.28 (58) x 6.30 (160) x 48 (1220)
- Technical Data - Rated capacity lb (kg): 3300 (1500)
- Technical Data - Battery voltage V: 48
- Technical Data - Wheelbase in (mm): 47.12 (1197) / 49.88 (1267)
- Technical Data - Height of tiller (max.) in (mm): 32.28 (820) / 45.28 (1150)
- Technical Data - Total lift in (mm): 4.52 (115)
- Technical Data - Fork overall width in (mm): 21.65 (550) / 26.97(685)
- Technical Data - Drive / lift motor kw: 0.75 / 0.5
- Technical Data - Lowered height - top of forks in (mm): 3.23 (82)
- Technical Data - Travel speed (loaded / unloaded) mph (km / h): 2.5 (4.0) / 2.80 (4.5)
