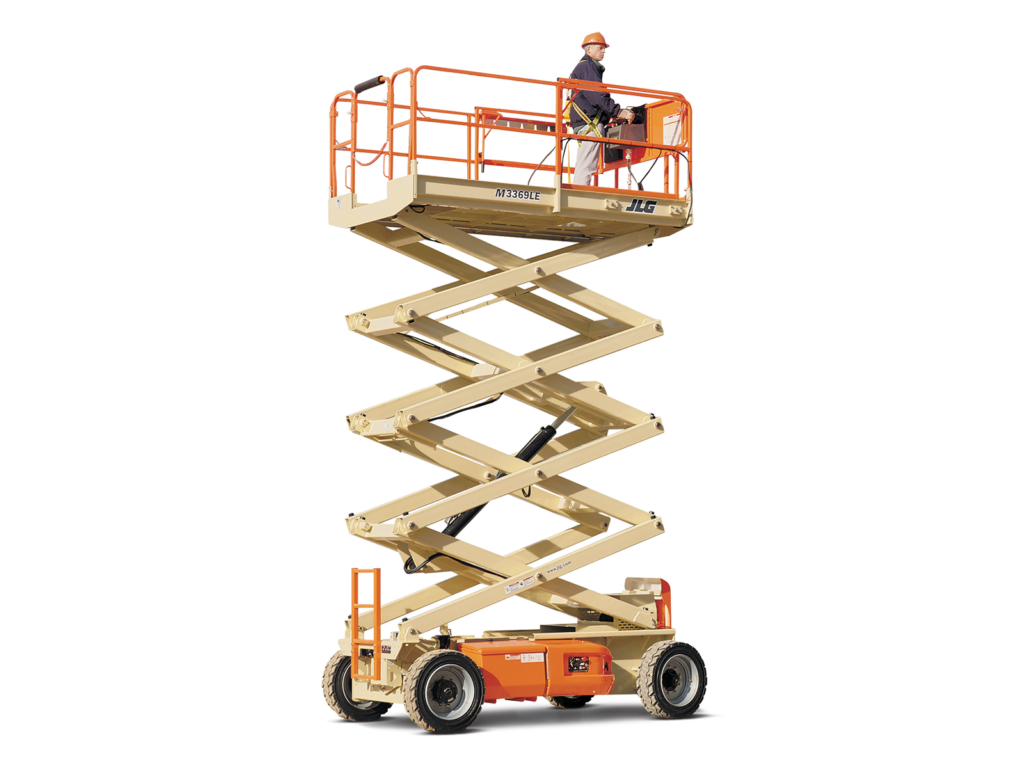

Key Specs
- Platform Height: 33 ft / 10.06 m
- Platform Capacity: 1000 lb / 453.59 kg
- Machine Width: 5 ft 9 in. / 1.75 m
Key Features
- Superior performance on or off slab
- Rugged terrain tires take you anywhere you want to go
- With optional hydraulic leveling jacks, uneven terrain is no problem
- Double the duty cycle of other scissor lifts so you can stay on the job longer
Specifications
- Brakes: Spring Applied Hyd. Released Discs
- Gradeability - 4WD: 45 %
- Gradeability - 2WD: 35 %
- Lift Time: 38 sec.
- Working Height: 39 ft / 11.89 m
- Charger: 21 amp Automatic
- Platform Dimension A: 9 ft 7 in. / 2.92 m
- Platform Dimension B: 5 ft 5 in. / 1.65 m
- Machine Height - Rails Folded: 6 ft 5 in. / 1.96 m
- Machine Width: 5 ft 9 in. / 1.75 m
- Platform Capacity - Extension: 250 lb / 113.40 kg
- Drive Speed - Platform Elevated: 0.4 mph / 0.64 km/h
- Capacity - Hydraulic Reservoir: 8.5 gal. / 32.18 L
- Machine Length: 10 ft 2 in. / 3.1 m
- Ground Clearance: 8 in. / 0.2 m
- Batteries: 8 x 6V, 370 amp-hr
- Platform Capacity: 1000 lb / 453.59 kg
- Machine Height: 9 ft / 2.74 m
- Machine Weight: 10060 lb / 4563.14 kg
- Drive Speed - Platform Lowered: 3 mph / 4.83 km/h
- Platform Extension Length: 3 ft / 0.91 m
- Tire Size: 240/55 x 17.5 Non-Marking
- Platform Railing Height: 3 ft 8 in. / 1.1 m
- Fuel Tank Capacity - Diesel: 4 gal. / 15.14 L
- Hydraulic Pump: Single Section Gear Pump
- Lower Time: 42 sec.
- Turning Radius - Outside: 15 ft 6 in. / 4.72 m
- Platform Height - Lowered: 5 ft 7 in. / 1.69 m
- Wheelbase: 7 ft 7 in. / 2.3 m
- Maximum Lift Height: 33 ft / 10.06 m
- Maximum Ground Bearing Pressure: 57 psi / 3.99 Kg/cm2
- Generator (Brand / HP / Fuel Type): Kubota / 6 HP / Diesel
