GENIE GS-3232—SLAB SCISSOR LIFTS

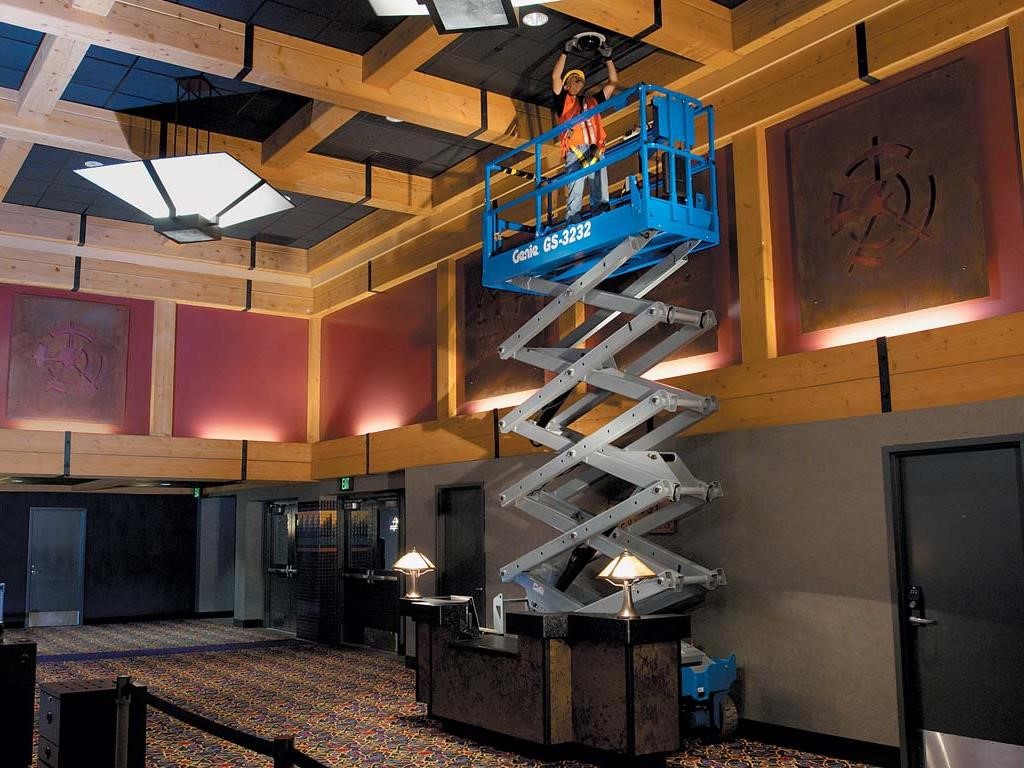

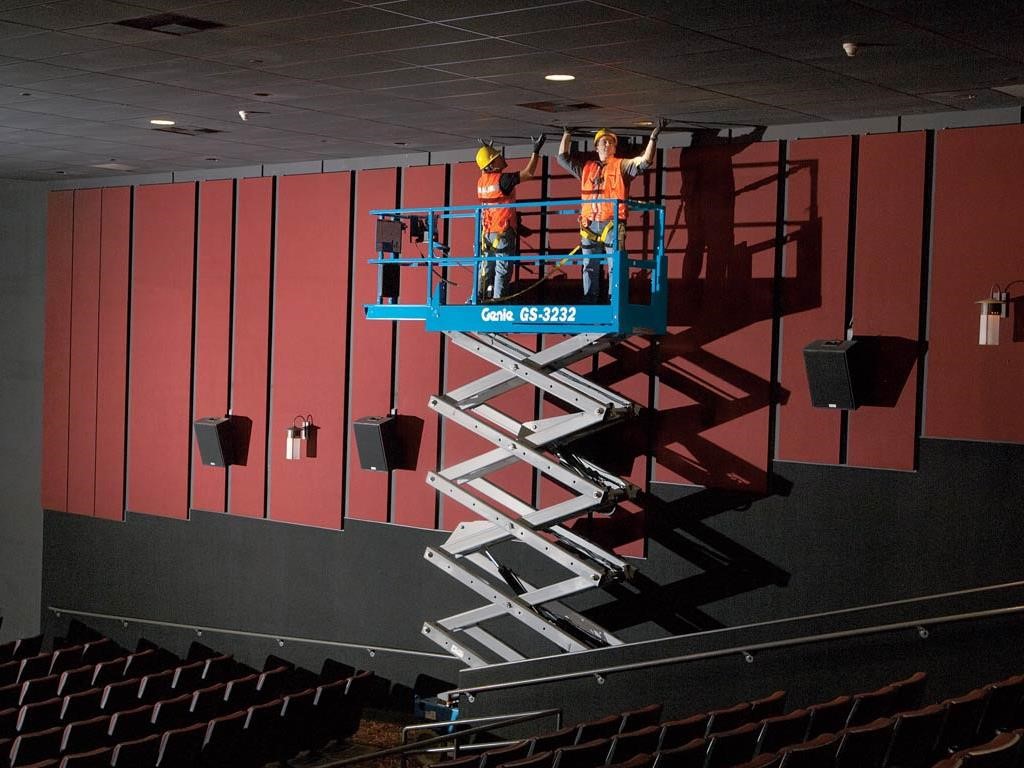

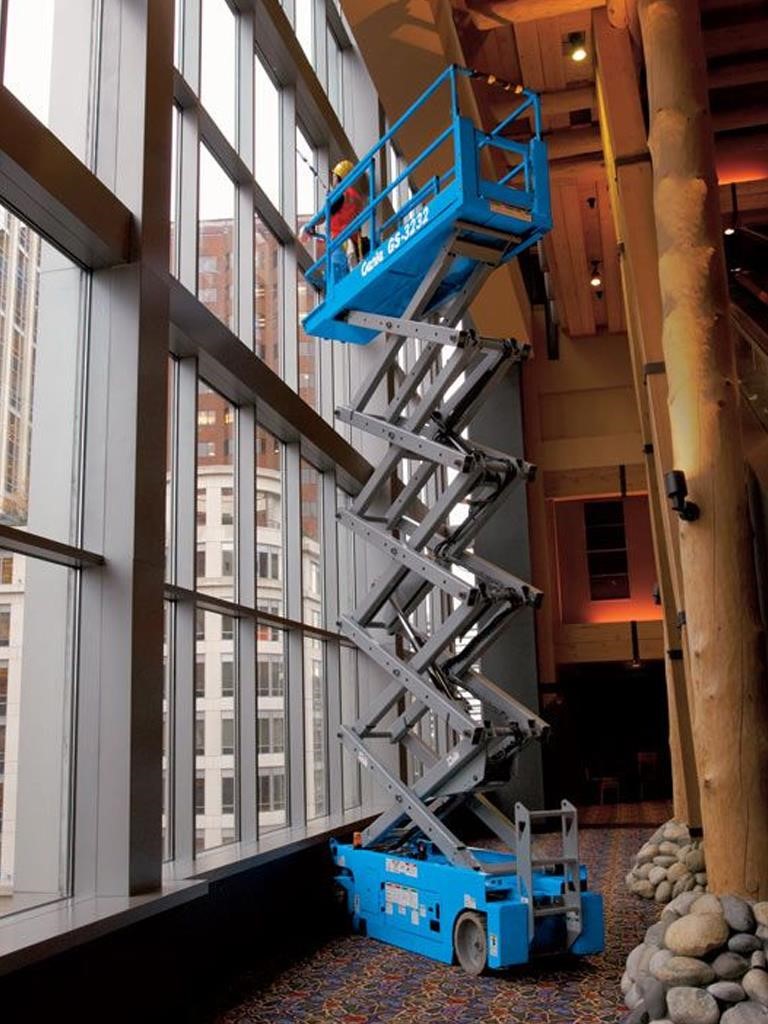

The Genie® GS™-3232 E-Drive slab scissor lift is an electric model ideal for operation in emission and sound-sensitive indoor and outdoor jobsites where space is limited. The standard, state-of-the-art Genie AC electric E-Drive system offers unmatched efficiency and runtime on installation, maintenance and construction jobs, especially when a significant amount of driving is required.
OVERVIEW
• Powerful AC electric drive motors for unmatched driving performance and industry-leading runtime per battery charge
• Quiet, zero-emission electric operation

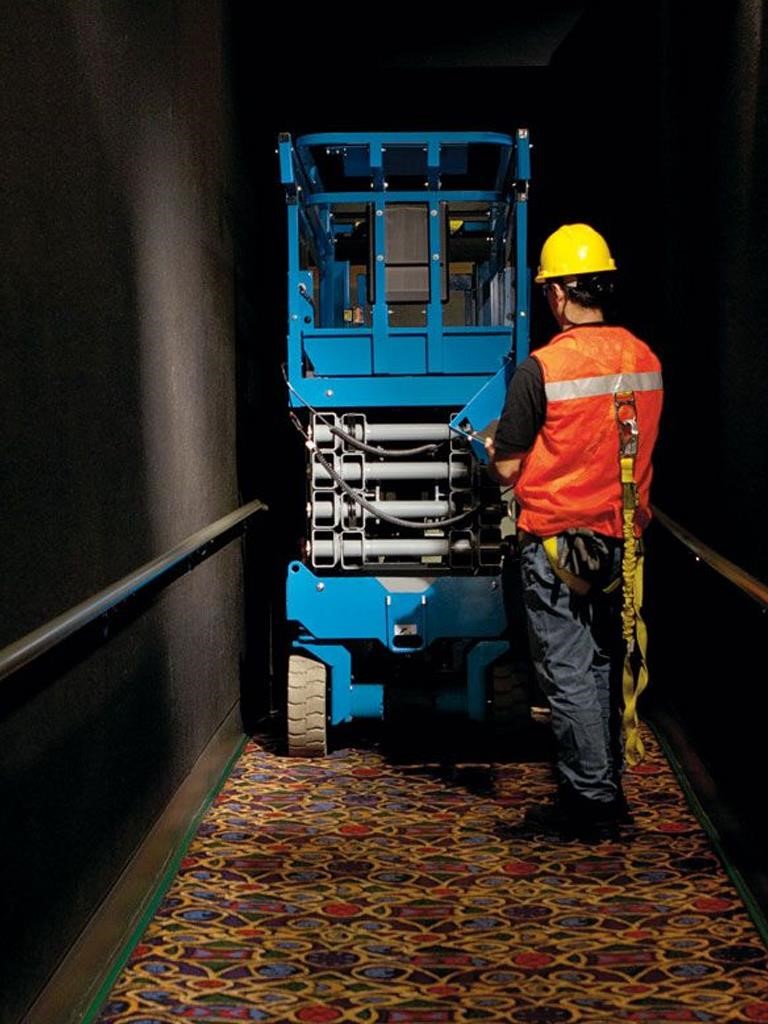

• Easy to maneuver in tight spaces
• Automatic leveling hydraulic outriggers level machine on slopes up to 5˚
• 25% gradeability with 14° breakover angle to easily get up slopes and loading ramps
• Large platform workspace with 36 in (0.91 m) roll-out platform extension
• Swing out components trays for easy access
• User-friendly Smart Link™ dual-zone controls for indoor and outdoor use
OPTIONS
CHASSIS OPTIONS
• AGM maintenance-free batteries
• Automotive-style horn
• Biodegradable hydraulic oil
• Biodegradable hydraulic oil(for GS-3232, GS-3246)
• Power inverter, 800W, 24V DC, 120V AC, 60 Hz
CERTIFICATION OPTIONS
• EE Certification
PLATFORM OPTIONS
• Air line to platform
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Sound And Vibration Levels - Sound Pressure level (platform workstation) : < 70 dBA
- Measurements - Ground clearance (center) - pothole guards retracted: 5 in | 12 cm
- Productivity - Tilt sensor activation - front to back: 3°
- Measurements - Platform height - stowed: 4 ft 4 in | 1.32 m
- Productivity - Max. platform drive height: 32 ft 1 in | 9.78 m
- Measurements - Working height max. - outdoor*: 24 ft | 7.49 m
- Productivity - Lift capacity: 500 lb | 227 kg
- Productivity - Max. platform occupancy (in/out): 2/1
- Productivity - Lifting speed - raise: 58 sec
- Weight*** And Floor Loading**** - Occupied floor pressure: 307 psf | 14.72 kPa
- Measurements - Platform height max. - outdoor: 18 ft | 5.49 m
- Measurements - Slide-out platform extension deck - length: 3 ft | 0.91 m
- Weight*** And Floor Loading**** - Tire load max.: 1,909 lb | 866 kg
- Measurements - Platform length - outside, extended: 10 ft 5 in | 3.18 m
- Weight*** And Floor Loading**** - Tire contact pressure: 125 psi | 864 kPa
- Weight*** And Floor Loading**** - ****Floor loading information is approximate and may vary depending on options and machine configurations. It should be used only with adequate safety factors.:
- Productivity - Turning radius - inside: 0
- Productivity - **Gradeability applies to driving on slopes:
- Productivity - Tilt sensor activation - side to side: 1.5°
- Sound And Vibration Levels - Vibrations: < 8 ft 2 in/s² | < 2.5m/s²
- Measurements - *The metric equivalent of working height adds 2 m to platform height. U.S. adds 6 ft to platform height.:
- Measurements - Width: 2 ft 8 in | 0.81 m
- Measurements - Guardrail height: 3 ft 7 in | 1.10 m
- Measurements - Platform height max. - indoor: 32 ft 1 in | 9.78 m
- Measurements - Wheelbase: 6 ft 1 in | 1.85 m
- Measurements - Height - stowed (rails lowered): 6 ft 10 in | 2.08 m
- Power - Hydraulic tank capacity (E-Drive): 4 gal | 15 L
- Productivity - Drive speed - raised: 0.5 mph | 0.8 km/h
- Productivity - Max. outrigger leveling - side to side: 5°
- Power - Hydraulic tank capacity (hydraulic drive):
- Weight*** And Floor Loading**** - Weight: 5,367 lb | 2,434 kg
- Measurements - Working height max. - indoor*: 38 ft 1 in | 11.78 m
- Productivity - Tires - solid non-marking: 15 × 5 in | 38 × 13 cm
- Sound And Vibration Levels - Sound Pressure level (ground workstation) : < 70 dBA
- Productivity - Lift capacity - extension deck extended: 250 lb | 113 kg
- Productivity - Gradeability - stowed**: 25%
- Power - Power source: 24V DC (4 × 6V 225Ah)
- Measurements - Length machine - stowed, extended: 10 ft 11 in | 3.33 m
- Measurements - Platform length - outside: 7 ft 5 in | 2.26 m
- Productivity - Drive speed - stowed: 2.0 mph | 3.2 km/h
- Productivity - Max. outrigger leveling - front to back: 3°
- Measurements - Length machine - stowed: 8 ft | 2.44 m
- Weight*** And Floor Loading**** - ***Weight refers to standard configuration and may vary depending on options and/or country standards.:
- Measurements - Platform width - outside: 2 ft 8 in | 0.81 m
- Measurements - Ground clearance - pothole guards deployed: 0.9 in | 2.30 cm
- Productivity - Turning radius - outside: 7 ft | 2.13 m
- Productivity - Lifting speed - lower: 32 sec
- Measurements - Toeboard height: 6 in | 15 cm
- Measurements - Height - stowed (folding rails): 8 ft | 2.44 m
