MOTREC MT-800—TOW TRACTORS
Our powerful tow tractors can handle even your toughest jobs—with plenty of juice to spare. They can securely pull loads of up to 200,000 lbs. while deftly maneuvering tight spaces and still stop on dime. These dependable ground support vehicles can also efficiently double as personnel carriers.

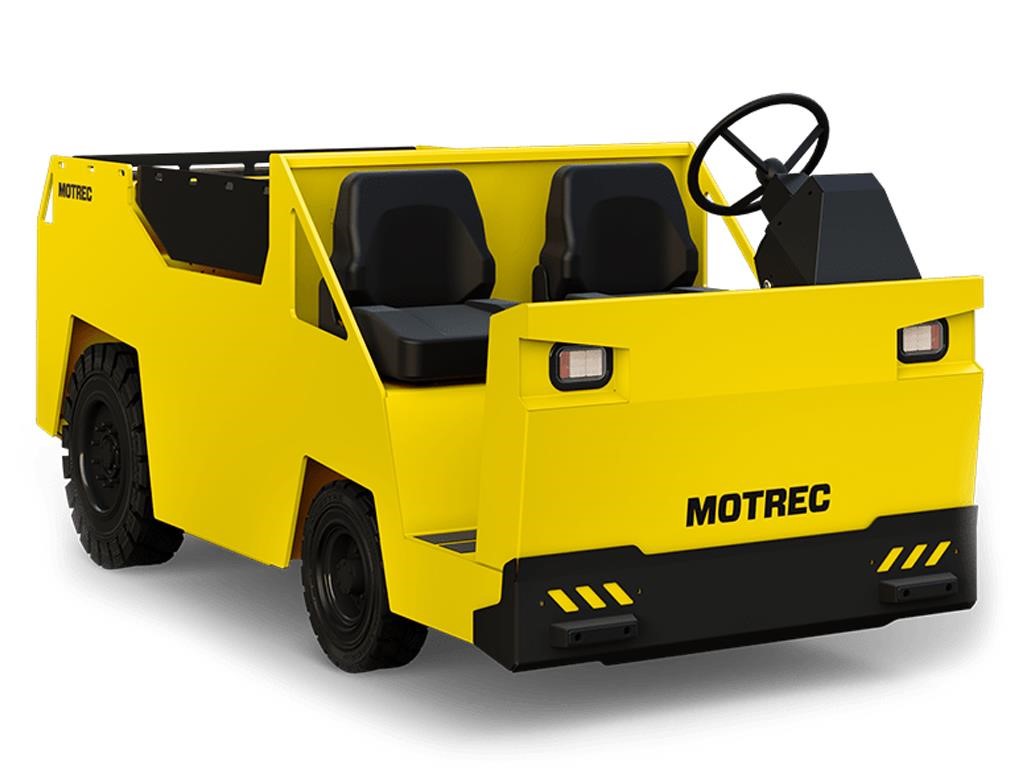

The MT-800 is a compact two-seater that’s engineered to deliver massive towing power in cramped industrial settings. Its 40 hp AC direct-drive motor easily hauls long, heavy loads up to 50,000 lbs. Its dual planetary wheel drive with enclosed wet disks reduces maintenance. Its electric regenerative brakes lengthen running time. And its thick, one-piece welded steel plate chassis – reinforced at all high-stress areas – makes this rugged workhorse virtually indestructible.
FEATURES
HIGH-EFFICIENCY ASYNCHRONOUS AC / DIRECT DRIVE MOTOR
Offers better control for full motor performance, as well as higher possible speeds and better torque at low speeds. Maintenance-free brushless electric motor equipped with temperature and speed sensors.
ROBUST LONG-LIFE INDUSTRIAL BATTERIES
No more mid-shift recharging! These powerful batteries can last a full shift, even with long distances. Supports Opportunity Rapid charging. Encased for easy replacing. Various options and models available.
SAFE AND EFFICIENT INCHING CONTROL BUTTONS
Makes hitching remarkably easy. Just step out of the vehicle and use the buttons at the back to slowly and safely inch it into position. Ideal for jobs requiring precise tow hitching.
AC CONTROLLER WITH SEALED CONNECTORS
Allows for precise speed control for greater safety and vehicle performance.
SILENT AND EFFORTLESS ELECTRIC POWER STEERING
Increases maneuverability in tight settings. Silent, effortless steering also reduces the operator fatigue that can lead to accidents. Efficient steering that won’t drain batteries uselessly.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice.
Specifications
- Technical Data - Model: MT 800 80V
- Vehicle Dimensions - Wheel Base: 58.5"
- Technical Data - Speed: 15 mph
- Technical Data - Load Capacity: 1,500 lbs.
- Vehicle Dimensions - Length: 115.5"
- Chassis - Suspension: Front leaf spring suspension with dual shock absorbers, rear rubber spring suspension
- Technical Data - Towing Capacity: 50,000 lbs.
- Equipment - Indicators: Digital display, battery status, hour meter, Fault diagnostic
- Battery Dimensions - Battery Weight:
- Chassis - Seats: Two suspension seats on slide adjusters
- Powertrain - Motor: 40 hp AC motor
- Deck Dimensions - Deck Length: 51"
- Chassis - Wheels: Solid softy wheels, front 600x9, rear 700x12
- Chassis - Steering: Power steering with hydrostatic orbitrol and hydraulic cylinder
- Vehicle Dimensions - Width: 49.75"
- Battery Dimensions - Battery Width: 45.5"
- Energy - Battery: No battery included
- Technical Data - Passengers: 2
- Powertrain - Drive Axle: Dual planetary wheel drives
- Powertrain - Transmission: Integrated motor/axle, direct drive
- Energy - Voltage: 80V
- Battery Dimensions - Battery Height: 31.5"
- Equipment - Safety: Deadman seat switch, reverse alarm
- Energy - Charger: No charger included
- Technical Data - Turning Radius: 120"
- Battery Dimensions - Battery Length: 26.8"
- Deck Dimensions - Deck Width: 48"
- Equipment - Lights: LED dual headlights & tail/brake lights, turn signals
- Vehicle Dimensions - Height: 54"
- Deck Dimensions - Deck Height: 43.5"
- Powertrain - Controller: Electronic speed controller, Inching controls on rear
- Chassis - Body: All-steel unibody construction
- Chassis - Brakes: Electric regenerative braking, hydraulic brakes with front dry discs and rear wet discs, hand lever parking brake
- Vehicle Dimensions - Weight: 3,500 lbs.
- Equipment - Accessories: 80V/12V converter for 12-volt accessories, horn
