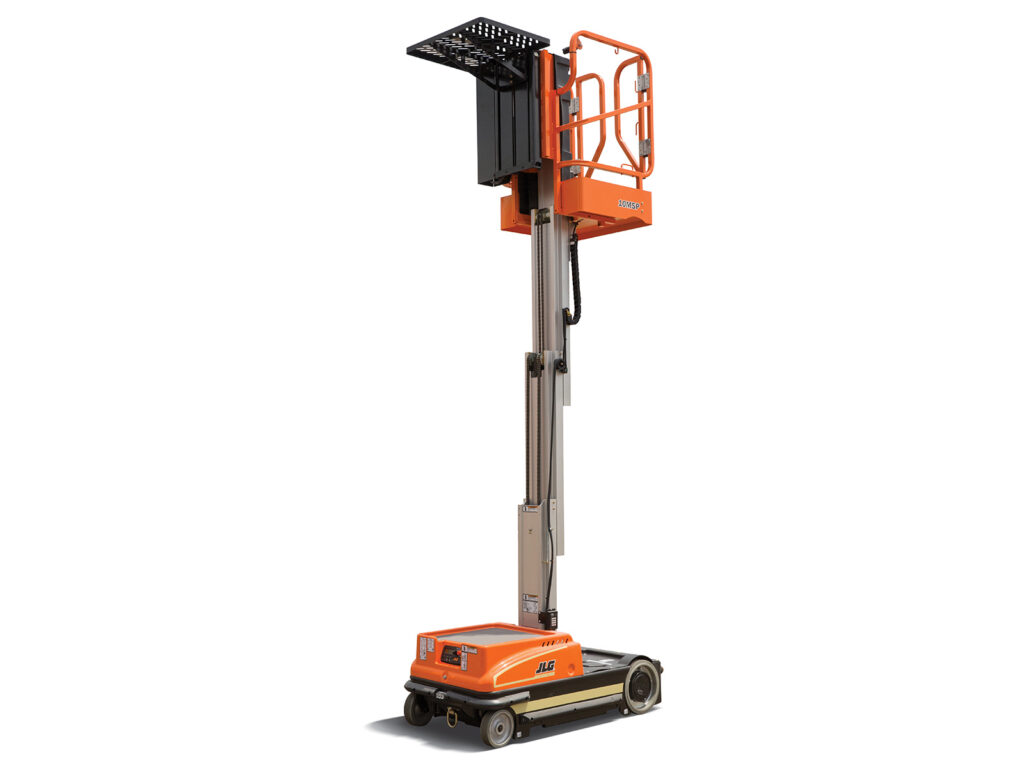

JLG: Aerial Lifts
Specifications
Batteries: | 4 Sealed 210-amp-hr Glass Mat (AGM) |
Drive Speed - Platform Elevated: | 0.7 mph / 1.13 km/h |
Drive Speed - Platform Lowered: | 5 mph / 8.05 km/h |
Drive System: | 4 Brush Direct Electric |
Gradeability: | 15 % |
Ground Clearance: | 2 in. / 0.05 m |
Ground Entry Height: | 1 ft 1 in. / 0.33 m |
Machine Height: | 4 ft 9 in. / 1.45 m |
Machine Length: | 5 ft 1 in. / 1.55 m |
Machine Weight: | 1100 lb / 498.95 kg |
Machine Width: | 2 ft 6 in. / 0.75 m |
Maximum Drive Height: | 10 ft / 3.05 m |
Platform Capacity: | 350 lb / 158.76 kg |
Platform Dimension A: | 1 ft 8 in. / 0.51 m |
Platform Dimension B: | 2 ft 3 in. / 0.69 m |
Wheel Size - Front Caster: | 8 x 2.5" |
Wheel Size - Rear: | 12.62 x 4" |
Working Height: | 16 ft / 4.88 m |
Key Specs
- Platform Height: 10 ft / 3.05 m
- Machine Width: 2 ft 6 in. / 0.75 m
Key Features
- Zero turning radius for superior maneuverability
- Built-in automatic charger for less downtime on the job
- One-hand operation for increased operator comfort
- Driveable at full height for increased efficiency
- Driveable at full height for increased efficiency
- Built-in automatic charger for less downtime on the job
- Zero turning radius for superior maneuverability
- One-hand operation for increased operator comfort
