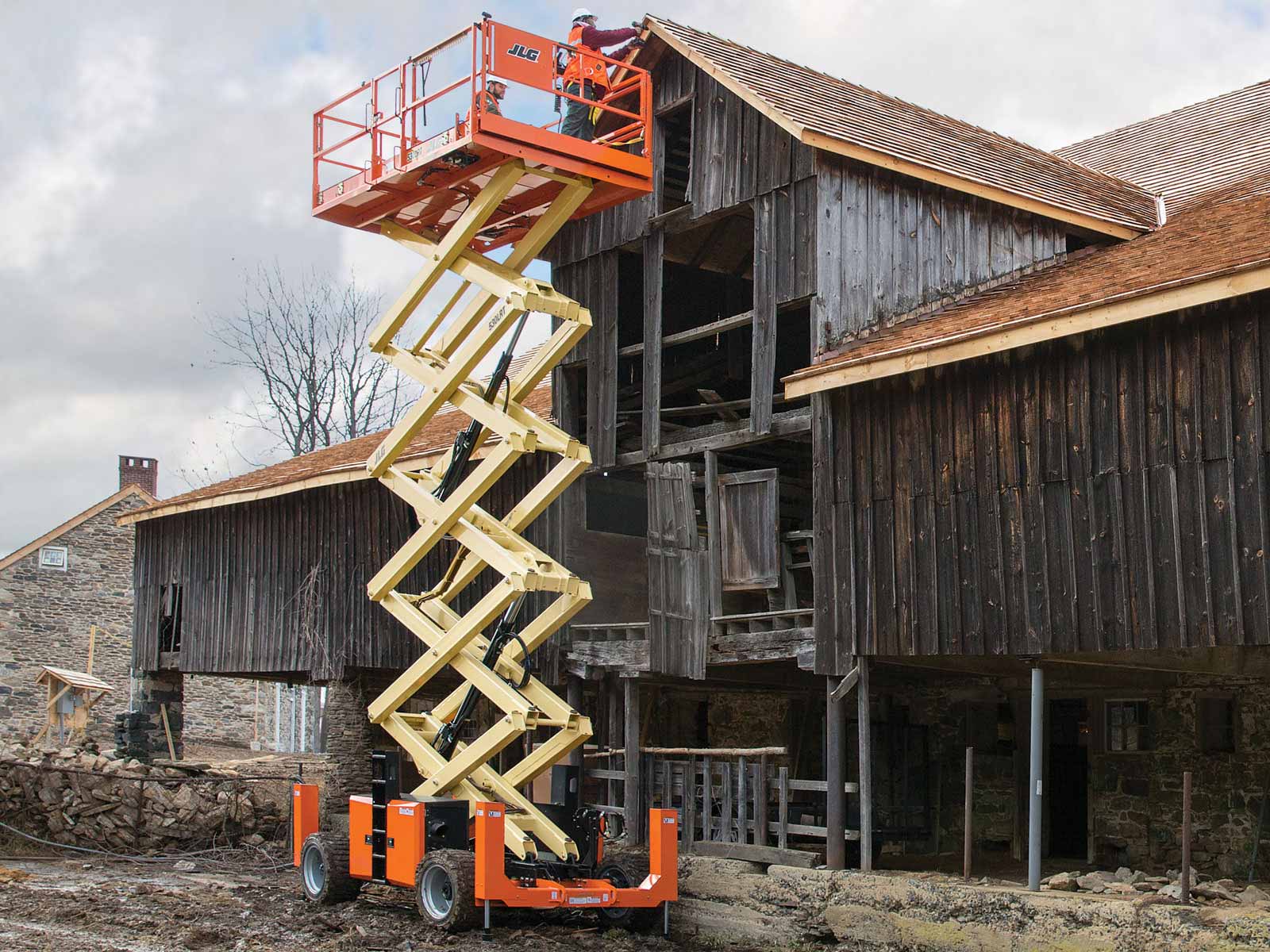

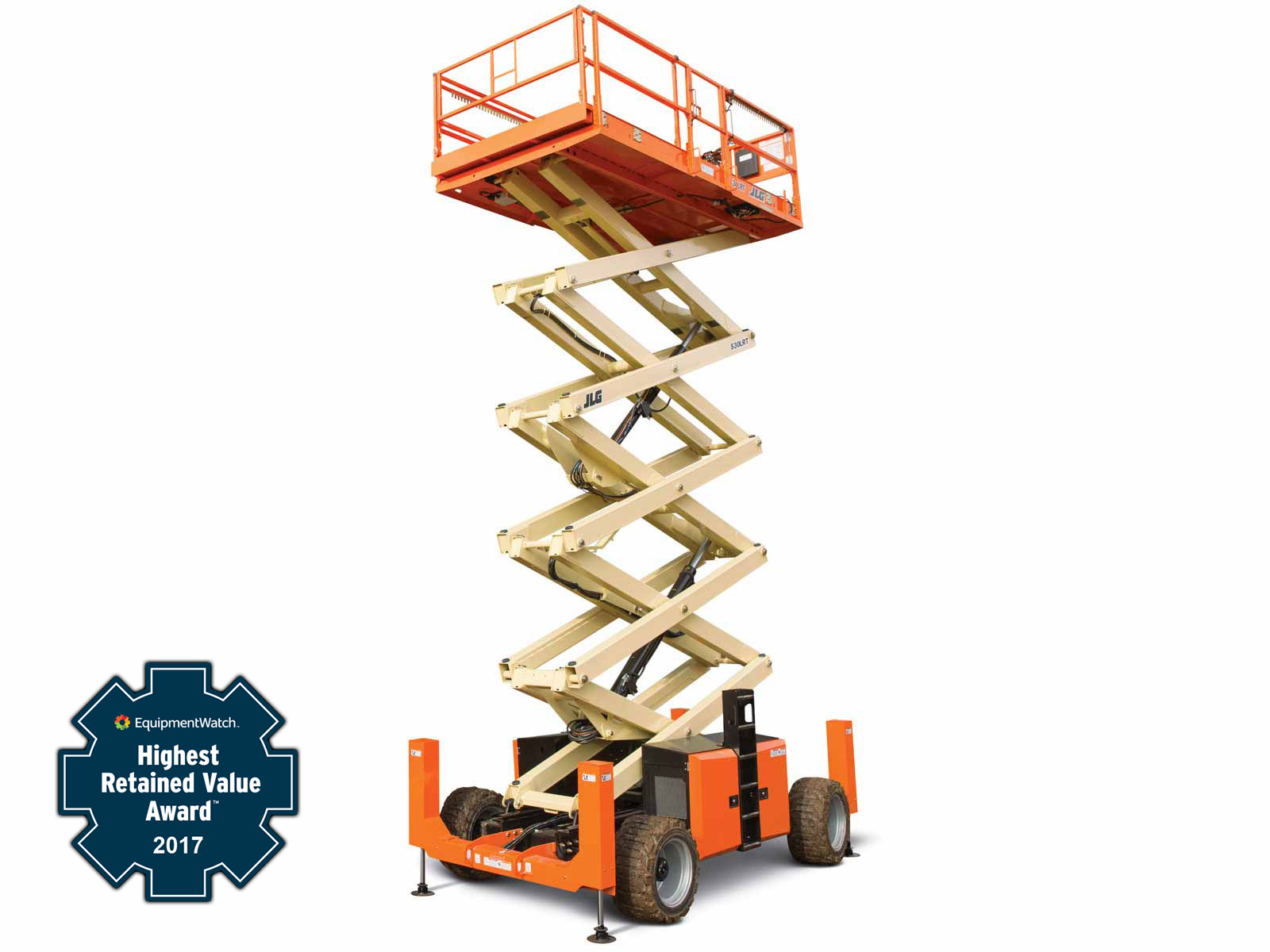

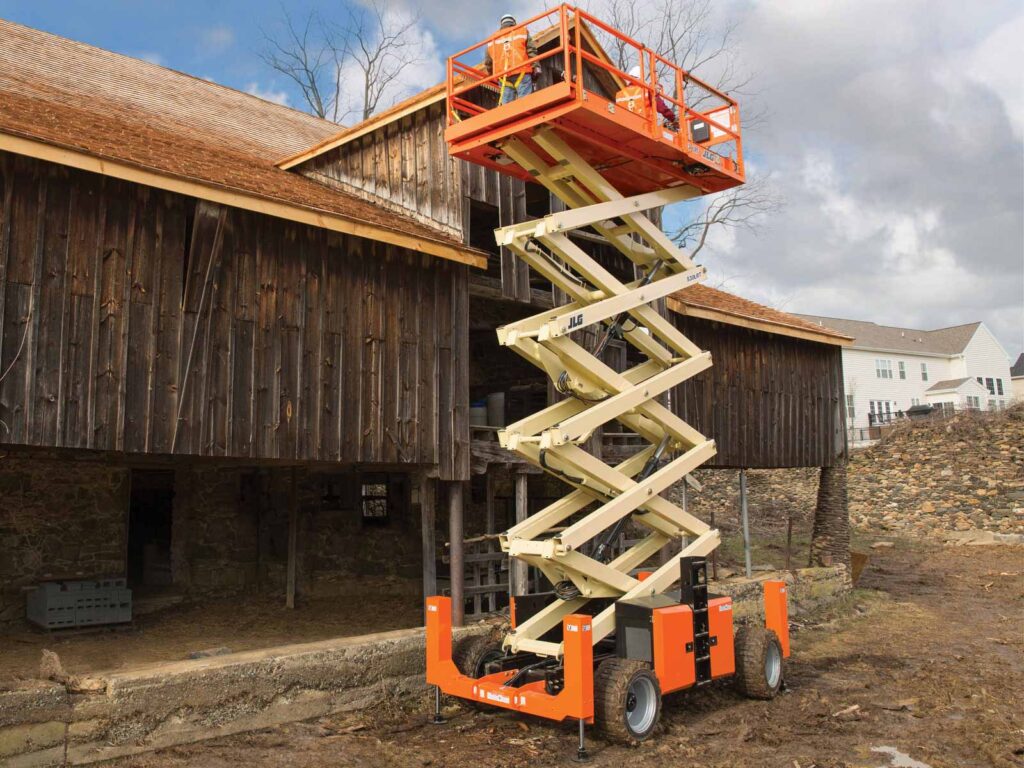

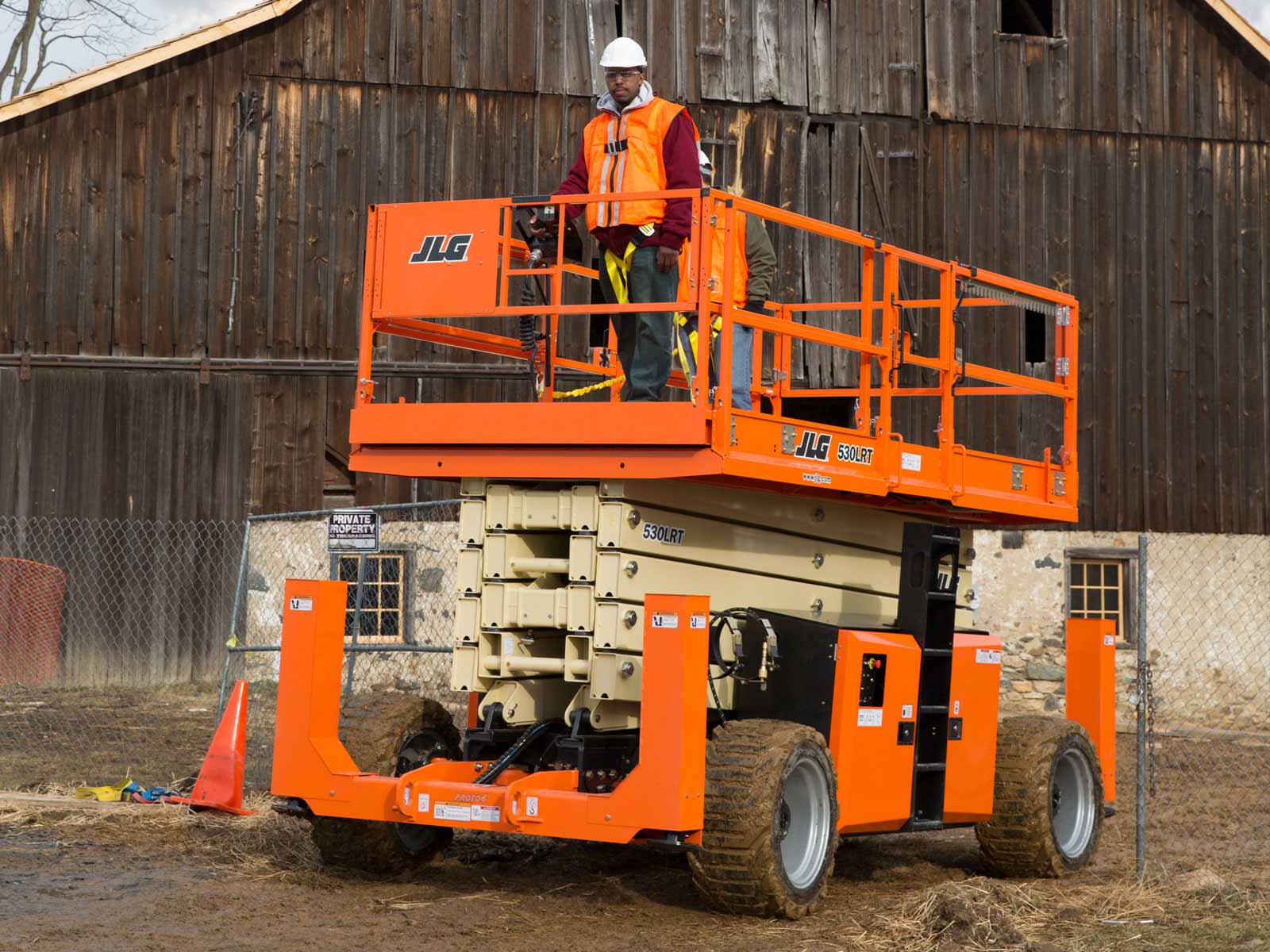

View Inventory530LRT
JLG: Aerial Lifts
Specifications
Batteries: | NA |
Capacity - Fuel Tank: | 22 gal. / 83.28 L |
Capacity - Hydraulic Reservoir: | 32 gal. / 121.13 L |
Drive Speed - Platform Elevated: | 0.5 mph / 0.80 km/h |
Drive Speed - Platform Lowered: | 3.5 mph / 5.63 km/h |
Engine Type - Diesel: | Kubota D1305 24.8 hp 18.5 kW |
Engine Type - Dual Fuel: | Kubota WG972 31 hp 23 kW |
Gradeability: | 40 % |
Ground Clearance: | 1 ft / 0.3 m |
Lift Time: | 59 sec. |
Lower Time: | 55 sec. |
Machine Height: | 10 ft 1 in. / 3.07 m |
Machine Height - Rails Folded: | 7 ft 9 in. / 2.36 m |
Machine Length: | 17 ft / 5.18 m |
Machine Weight: | 17000 lb / 7711.07 kg |
Machine Width: | 7 ft 7 in. / 2.31 m |
Maximum Drive Height: | 30 ft / 9.14 m |
Platform Capacity: | 1500 lb / 680.39 kg |
Platform Capacity - Extension: | 500 lb / 226.80 kg |
Platform Dimension A: | 6 ft 2 in. / 1.87 m |
Platform Dimension B: | 13 ft / 3.96 m |
Platform Extension Length: | 4 ft / 1.22 m |
Platform Height: | 53 ft / 16.15 m |
Platform Height - Lowered: | 7 ft / 2.13 m |
Platform Railing Height: | 3 ft 1 in. / 0.94 m |
Tire Size: | 12 x 16.5 FF |
Turning Radius - Outside: | 19 ft 5 in. / 5.92 m |
Wheelbase: | 9 ft 9 in. / 2.97 m |
Key Specs
- Platform Height: 53 ft / 16.15 m
- Platform Capacity: 1500 lb / 680.39 kg
- Machine Width: 7 ft 7 in. / 2.31 m
Key Features
- Optimized power train: Allows for greater fuel efficiency
- Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers

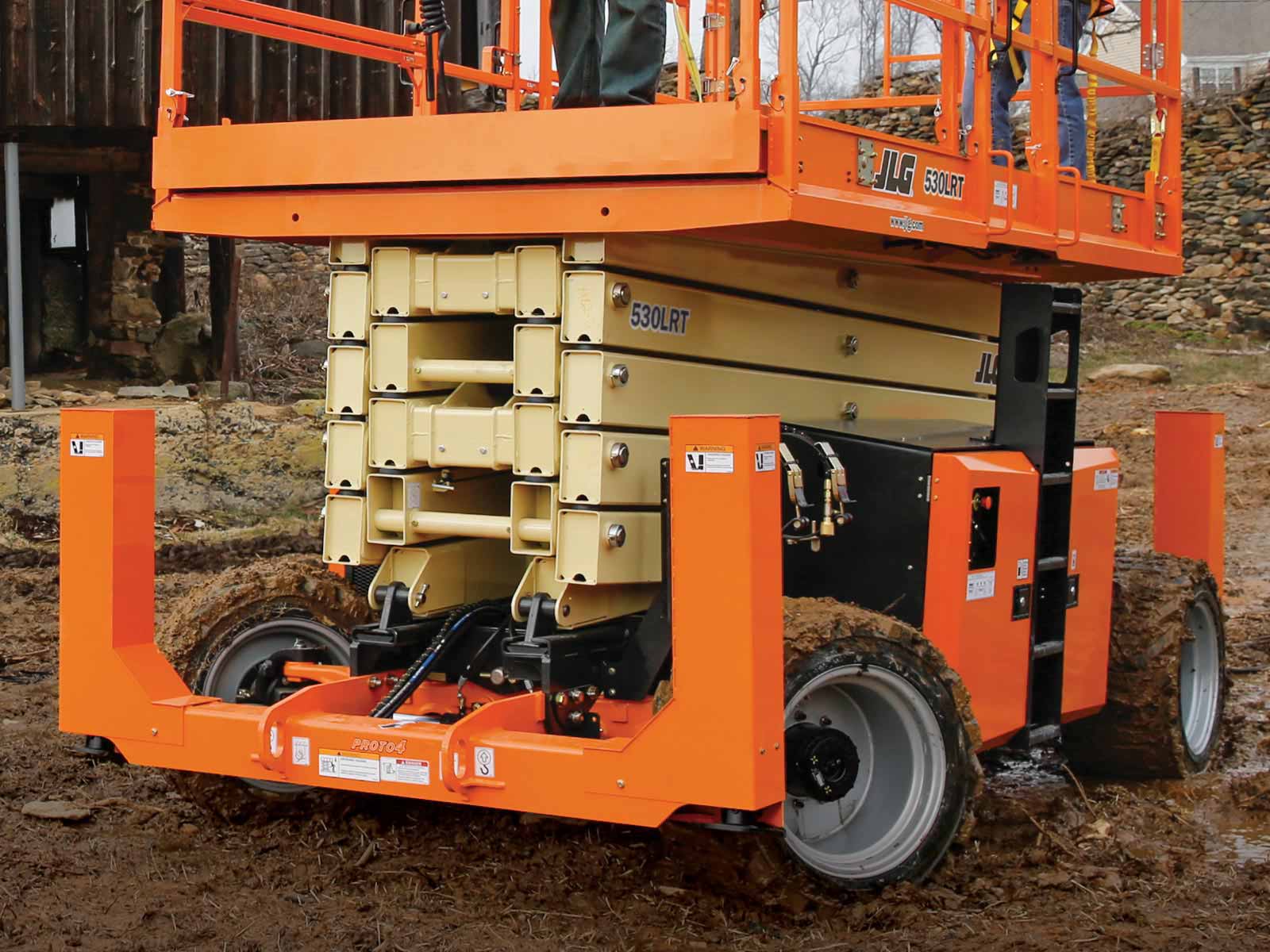

- Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
- Standard oscillating axle: Enhances terrainability across uneven surfaces while maintaining stability
- Standard 4 ft deck extension: Provides more space for people and materials; makes this model the biggest scissor lift JLG offers
- Optimized power train: Allows for greater fuel efficiency
