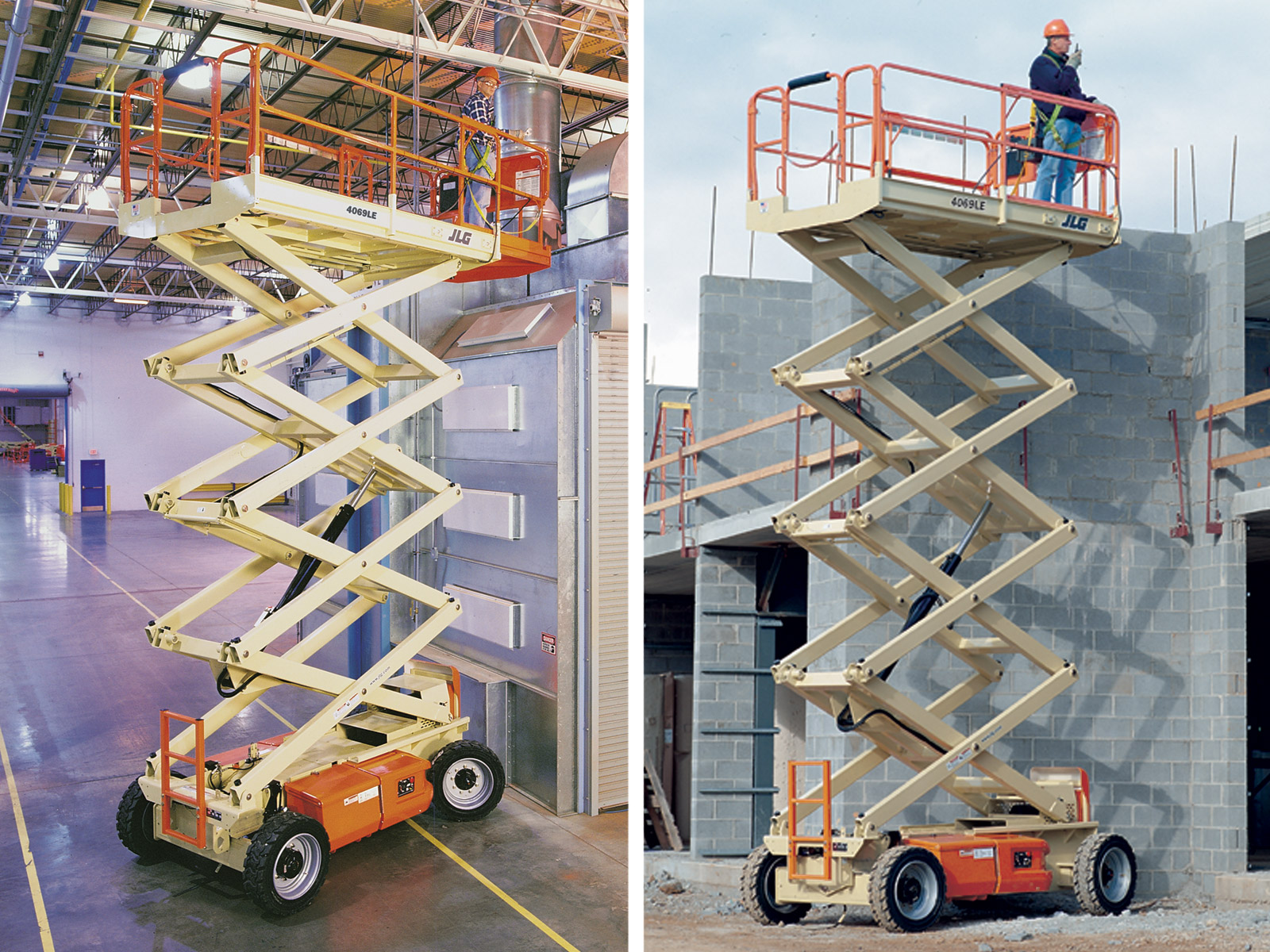

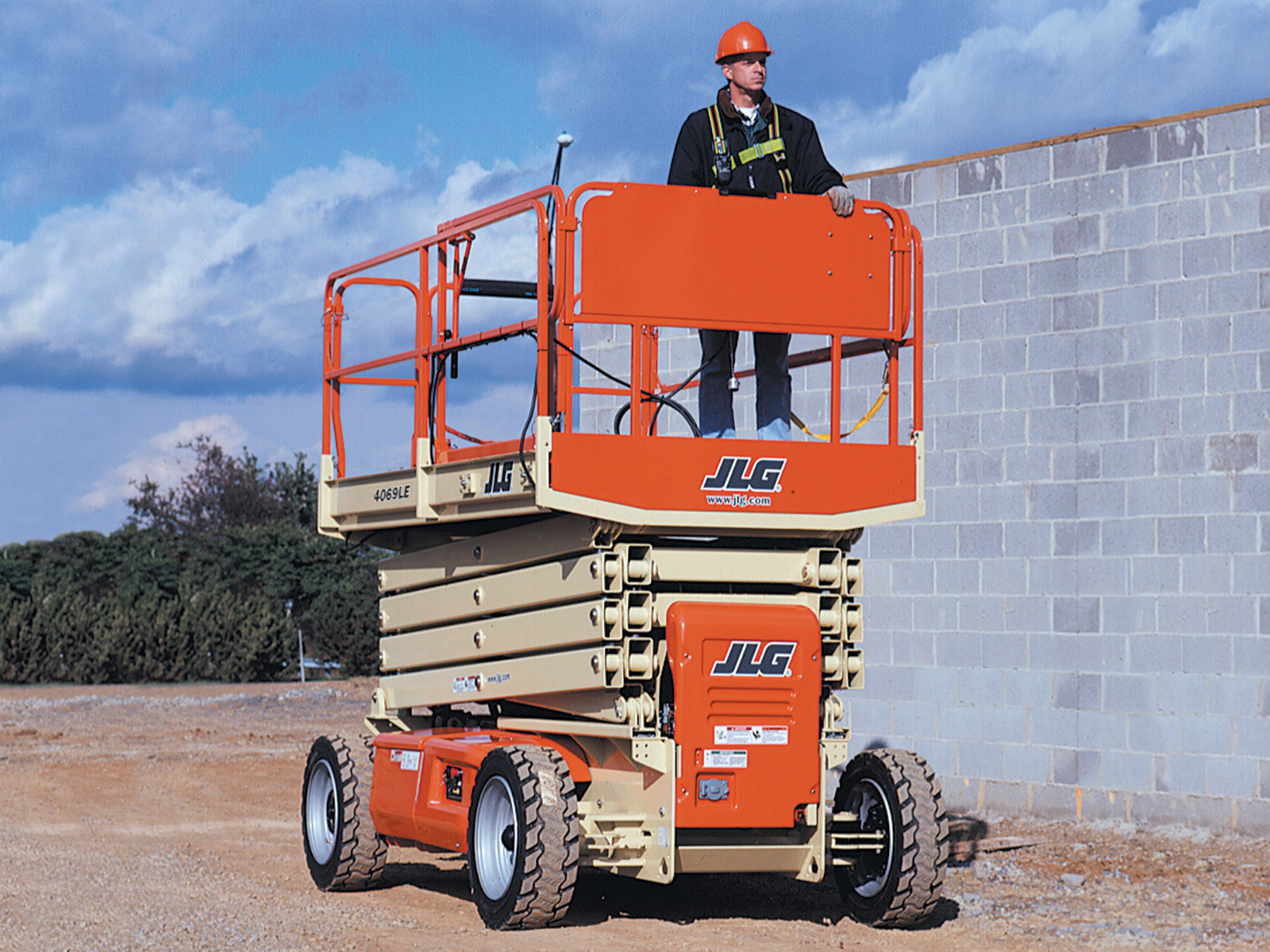

View Inventory4069LE
JLG: Aerial Lifts
Specifications
Batteries: | 8 x 6V, 370 amp-hr |
Brakes: | Spring Applied Hyd Released Discs |
Capacity - Hydraulic Reservoir: | 8.5 gal. / 32.18 L |
Charger: | 21 Amp Automatic SCR |
Drive Speed - Platform Elevated: | 0.4 mph / 0.64 km/h |
Drive Speed - Platform Lowered: | 3 mph / 4.83 km/h |
Gradeability - 2WD: | 35 % |
Gradeability - 4WD: | 45 % |
Ground Clearance: | 8 in. / 0.2 m |
Hydraulic Pump: | Single Section Gear Pump |
Lift Time: | 54 sec. |
Lower Time: | 50 sec. |
Machine Height: | 9 ft 3 in. / 2.81 m |
Machine Height - Rails Folded: | 6 ft 7 in. / 2.01 m |
Machine Length: | 10 ft 4 in. / 3.15 m |
Machine Weight: | 10560 lb / 4789.94 kg |
Maximum Drive Height: | 30 ft / 9.14 m |
Maximum Ground Bearing Pressure: | 61 psi / 4.27 Kg/cm2 |
Maximum Lift Height: | 40 ft / 12.19 m |
Outriggers or Stabilizers: | No |
Platform Capacity: | 800 lb / 362.87 kg |
Platform Capacity - Extension: | 250 lb / 113.40 kg |
Platform Dimension A: | 9 ft 7 in. / 2.92 m |
Platform Dimension B: | 5 ft 5 in. / 1.65 m |
Platform Extension Length: | 3 ft / 0.91 m |
Platform Height - Lowered: | 5 ft 9 in. / 1.75 m |
Platform Railing Height: | 3 ft 8 in. / 1.1 m |
Tire Size: | 240/55 x 17.5 Non-Marking |
Turning Radius - Outside: | 15 ft 6 in. / 4.72 m |
Wheelbase: | 7 ft 7 in. / 2.3 m |
Working Height: | 46 ft / 14.02 m |
Key Specs
- Platform Height: 40 ft / 12.19 m
- Platform Capacity: 800 lb / 362.87 kg
- Machine Width: 5 ft 9 in. / 1.75 m
Key Features
- Superior performance on or off slab
- Rugged terrain tires take you anywhere you want to go
- With optional hydraulic leveling jacks, uneven terrain is no problem
- Double the duty cycle of other scissor lifts so you can stay on the job longer
- Double the duty cycle of other scissor lifts so you can stay on the job longer
- Superior performance on or off slab
- With optional hydraulic leveling jacks, uneven terrain is no problem
- Rugged terrain tires take you anywhere you want to go
