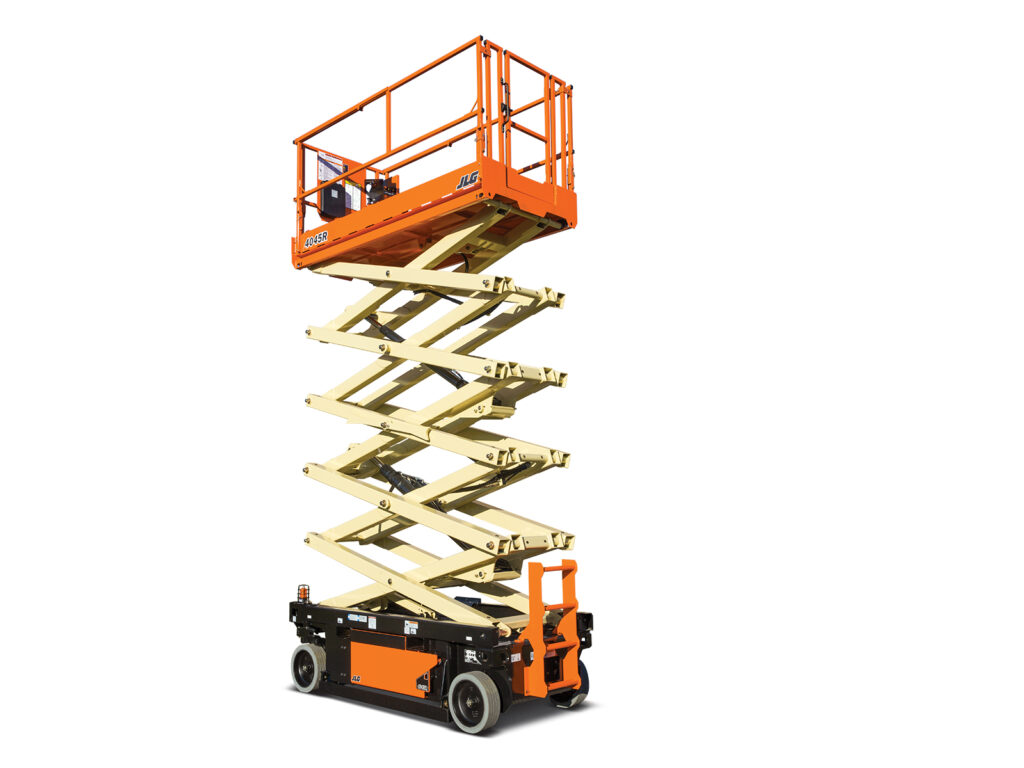

View Inventory4045R
JLG: Aerial Lifts
Specifications
Batteries: | 4 x 12v 150 amp-hr |
Brakes: | Multi-Disc Friction (Hydraulic) |
Capacity - Hydraulic Reservoir: | 7.9 gal. / 29.90 L |
Charger: | 27 amp High Frequency Charger |
Drive Speed - Platform Elevated: | 0.5 mph / 0.80 km/h |
Drive Speed - Platform Lowered: | 2 mph / 3.22 km/h |
Drive System: | Hydraulic Front Wheel |
Elevated Drive Height Indoor: | 39 ft 3 in. / 11.96 m |
Elevated Drive Height Outdoor: | 29 ft / 8.84 m |
Gradeability: | 25 % |
Ground Clearance: | 5 in. / 0.13 m |
Hydraulic Pump: | Fixed Displacement Gear |
Lift Time: | 73 sec. |
Lower Time: | 48 sec. |
Machine Length: | 8 ft 10 in. / 2.69 m |
Machine Weight: | 7000 lb / 3175.15 kg |
Machine Width: | 3 ft 9 in. / 1.14 m |
Maximum Ground Bearing Pressure: | 135 psi / 9.45 Kg/cm2 |
Platform Capacity - Extension: | 250 lb / 113.40 kg |
Platform Capacity - Indoor: | 770 lb / 349.27 kg |
Platform Capacity - Outdoor: | 550 lb / 249.48 kg |
Platform Extension Length: | 3 ft / 0.91 m |
Platform Height - Lowered: | 4 ft 7 in. / 1.4 m |
Platform Railing Height: | 3 ft 8 in. / 1.12 m |
Tire Size: | 16 X 5in |
Turning Radius - Inside: | 0 in. / 0 m |
Turning Radius - Outside: | 8 ft 4 in. / 2.54 m |
Wheelbase: | 6 ft 8 in. / 2.03 m |
Working Height: | 45 ft 3 in. / 13.79 m |
Key Specs
- Machine Width: 3 ft 9 in. / 1.14 m
- Working Height: 45 ft 3 in. / 13.79 m
Key Features
- Narrow 45 in. Width - One of the narrowest widths in its class allows for use in warehouse and distribution center aisles
- Simplified, Reliable Design - Simple pothole protection system has fewer moving parts to reduce service calls
- Built Rugged for Rental - An all-steel platform and steel component trays allow it to meet the demands of the toughest job sites
- Built Rugged for Rental - An all-steel platform and steel component trays allow it to meet the demands of the toughest job sites
- Simplified, Reliable Design - Simple pothole protection system has fewer moving parts to reduce service calls
- Narrow 45 in. Width - One of the narrowest widths in its class allows for use in warehouse and distribution center aisles
